Rack Extender Bracket Set – 4″ Deep – 2U

Price:

$37.49

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

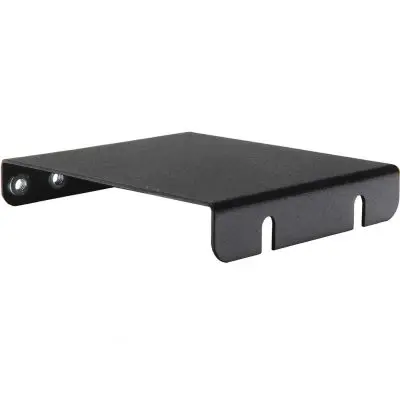

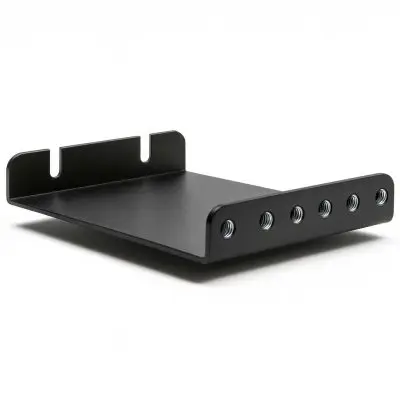

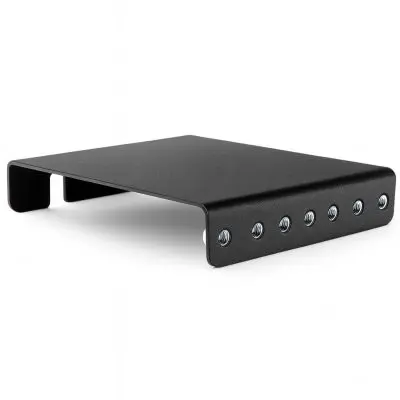

Rack Extender Bracket Set – 2U

Designed to extend rack or cabinet mount hardware 4 inches. A variety of rack space sizes are available.

The Adapters are made in the USA from premium 16 gauge steel, powder coated in satin black for a durable finish.

10-32 Pemnuts are inserted on one side of the adapters with EIA spaced slots for mounting.

Each pair of adapters is boxed and includes two types of EIA style mounting hardware:

  • 8) 12-24 Black Panhead dog head Phillips
  • 8) 10-32 Black Panhead dog head Phillips



Dimensions — Standard Rack Unit Sizes
U Size Rack Spaces Height (inches) Height (cm)
1U 1 1.75″ 4.45 cm
2U 2 3.50″ 8.89 cm
3U 3 5.25″ 13.34 cm
4U 4 7.00″ 17.78 cm
5U 5 8.75″ 22.23 cm
8U 8 14.00″ 35.56 cm
Tip:
Multiply the U size by 1.75 to get height in inches (1 inch = 2.54 cm).
Example: 5U × 1.75″ = 8.75″ ≈ 22.23 cm.
