DB9 – 16 Port – Feedthru Panel – Male to Male – 1U – Loaded

Price:

$114.89

PN: FP16-MM-D09-GRU SKU FP16-MM-D09-GRU Category Tags , , , , , ,

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

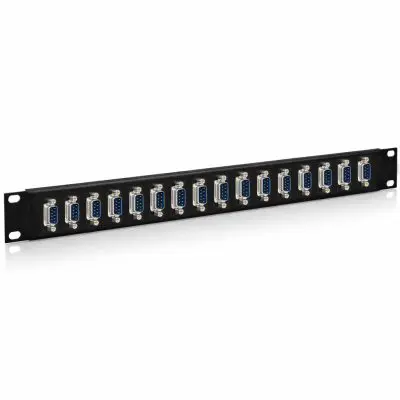

D-Subminiature 9-Pin – Male to Male – 16 Port Feedthru Panel – 1U Loaded
Standard 19″ rack width • 1U height • 16 D-subminiature 9-pin Male to Male ports • Black powder-coated steel

This 1U D-subminiature 9-pin 16-port feedthru panel is built for clean, organized serial and low-voltage signal management in standard 19-inch rack environments. With 16 DB9 Male – Male Feedthru Connectors pre-installed, it provides a ready-to-deploy solution for RS-232 patching, control systems, instrumentation, test benches, and legacy communications applications.

Technical Specifications—D-Subminiature – Male to Male – 9-Pin Panel
CATEGORY DETAIL
Form Factor 1U rackmount
Width 19 inches (standard EIA rack width)
Connector Type 16-port D-subminiature 9-pin Male to Male feedthru connectors
Material Steel with black powder-coat finish
Mounting Standard rackmount flanges with screw holes
Applications RS-232 serial patching, industrial control, instrumentation, data acquisition, legacy device interconnects
Included Hardware Kit (Part #93-040400)

Each panel ships with a comprehensive hardware kit including two popular screw types to fit any rack or cabinet:

  • 4 Ă— 12-24 Black Panhead Phillips screws
  • 4 Ă— 10-32 Black Panhead Phillips screws
Dimensions — Standard Rack Unit Sizes
U Size Rack Spaces Height (Inches) Height (cm)
1U 1 1.75″ 4.45 cm
2U 2 3.50″ 8.89 cm
4U 4 7.00″ 17.78 cm
5U 5 8.75″ 22.23 cm
8U 8 14.00″ 35.56 cm
TIP
Maintenance Tip: Multiply the U size by 1.75 to get height in inches (1 inch = 2.54 cm).
Example: 5U Ă— 1.75″ = 8.75″ ≈ 22.23 cm.
Why buy from Gruber
  • Serial infrastructure ready — Ideal for RS-232, console, control, and legacy communications environments.
  • Durable build — Industrial-grade steel panel with long-lasting black powder-coat finish.
  • Ready to install — Ships loaded with 16 DB9 male-to-male feedthru connectors for fast deployment.
