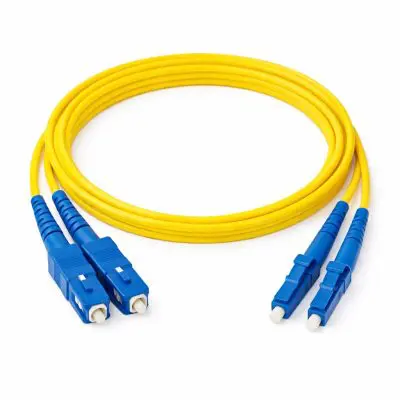

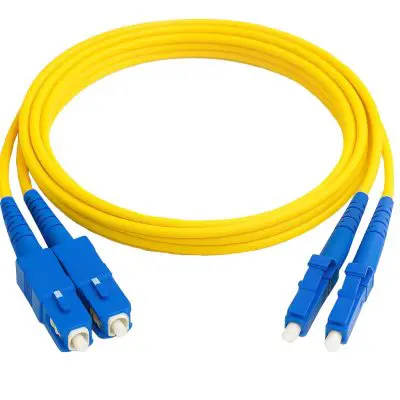

OS2 LC – SC Single-Mode Duplex Fiber Jumper Cable — 2.0mm Yellow Jacket
Single-Mode Fiber Patch Cable
Our 2 mm OS2 LC to SC single-mode duplex fiber jumper is engineered for ultra-low-loss, long-distance optical networking. Featuring a precision 9/125 µm single-mode fiber core, this yellow-jacketed cable provides exceptional signal integrity for long-haul telecommunications, data-center interconnects, and enterprise backbone networks.
Key Features
- OS2 Single-Mode Fiber — Optimized for 1310 nm and 1550 nm wavelengths used in long-distance optical transmission.

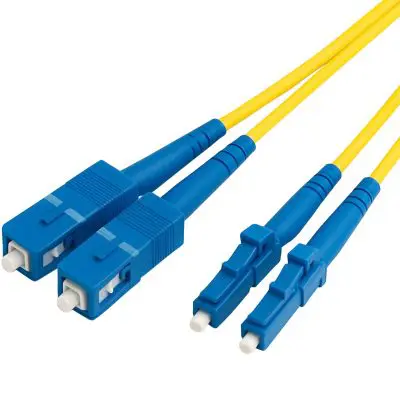

- LC to SC Duplex Connectors — Precision-polished UPC ferrules deliver low insertion loss (≤ 0.3 dB) and high return loss (≥ 50 dB).
- 2 mm PVC Jacket — Slim, durable outer sheath designed for high-density racks and structured cable routing.
- Factory Tested — 100% inspection for attenuation, connector end-face quality, and tensile strength.
- Wide Temperature Range — Rated for –20 °C to +70 °C indoor and outdoor environments.
- RoHS Compliant — Environmentally responsible materials and manufacturing.
Performance Specifications
| Parameter |
Specification |
| Core / Cladding Diameter |
9 µm / 125 µm |
| Maximum Attenuation (1310 nm) |
≤ 0.40 dB/km |
| Maximum Attenuation (1550 nm) |
≤ 0.30 dB/km |
| Minimum Return Loss |
≥ 50 dB |
| Operating Bandwidth |
Up to 10 Gbps and beyond |
| Maximum Link Length |
10 km (1310 nm) • 40 km (1550 nm) |
Typical Applications
- Long-distance telecommunications
- Data center interconnects
- Enterprise backbone networks
- CATV and metro-access networks
- Campus and building riser installations
Quick Note
Unlike multimode fiber (OM1–OM4), which is designed for shorter campus links (typically up to 550 m), OS2 single-mode fiber supports extremely long transmission distances with minimal signal loss. This makes it ideal for carrier networks and high-capacity data-center backbone links.
