Price range: $24.93 through $34.56

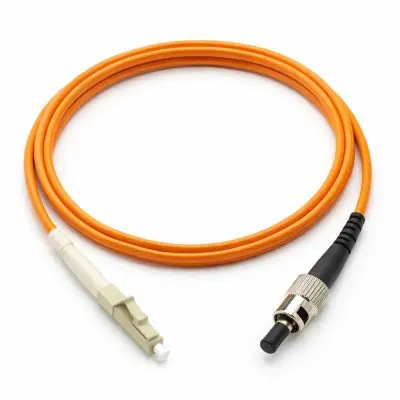

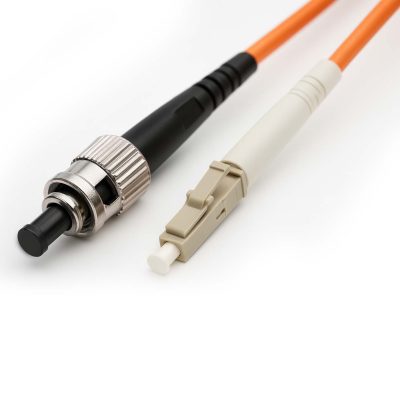

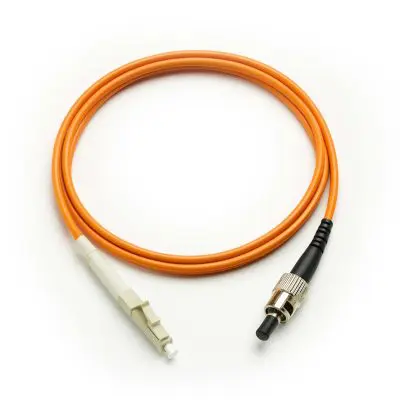

This OM2 LC to ST simplex fiber jumper cable provides dependable optical connectivity between fiber networking equipment, patch panels, and transceivers. The cable features a durable 3.0Â mm orange jacket and precision-polished connectors, combining the compact LC connector with the rugged bayonet-style ST connector commonly used in enterprise, telecom, and legacy fiber environments.
| Fiber Type | Core Size | Bandwidth | Typical Data Rate | Distance | Common Applications |
|---|---|---|---|---|---|
| OM1 | 62.5 µm | ~200 MHz·km | Up to 1 Gbps | ~275 m | Legacy fiber installations |
| OM2 | 50 µm | ~500 MHz·km | Up to 1 Gbps | ~550 m | Enterprise and campus networks |
| OM3 | 50 µm (laser optimized) | ~2,000 MHz·km | Up to 10 Gbps | ~300 m | High-speed data center backbone |
| OM4 | 50 µm (advanced laser optimized) | ~4,700 MHz·km | 10–100 Gbps+ | ~550 m (10 Gbps) ~150 m (40/100 Gbps) |
High-performance data center networks |
The main differences between OM1, OM2, OM3, and OM4 multimode fiber involve core size, bandwidth capacity, supported transmission distance, and maximum data rate. Higher-grade multimode fibers support faster speeds and longer distances, making them suitable for modern high-bandwidth networking environments.
