BNC – 24 Port Feedthru Panel – 1U – Unloaded

Price:

$20.28

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

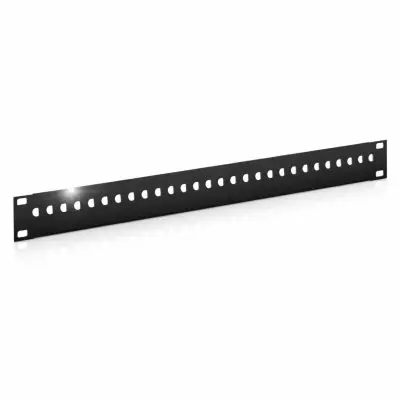

BNC Feed-Through Panel—1U, 19-Inch, 24-Port Unloaded
• Standard 19″ rack width • 1U height • 24 pre-punched D-style ports • Unloaded for coaxial BNC connectors

This 1U BNC feed-through panel is engineered for standard 19-inch rackmount environments, maximizing patching density in a single rack space.
Outfitted with 24 D-style cutouts, it ships unloaded so users can install their preferred 50Ω or 75Ω BNC feed-through barrels.
Crafted from heavy-duty steel with a black powder-coated finish, this panel is ideal for high-density broadcast, RF, or security installations.

Technical Specifications — BNC Feed-Through Panel
Category Detail
Form Factor 1U rackmount
Width 19 inches (standard EIA rack width)
Connector Type 24-port D-style holes for BNC feed-through barrels (unloaded)
Material Steel with black powder-coat finish
Mounting Standard rackmount flanges with screw holes
Applications Broadcast studios, RF patch bays, surveillance systems, coax signal distribution
Why buy from Gruber
  • High-density patching — 24 ports in a single 1U frame for tight rack layouts.
  • Built to last — All-steel panel with durable powder coat finish.
  • Configurable signal routing — Add your choice of BNC feed-through barrels for 50Ω or 75Ω coax systems.
