DB15 – HD Connector Block – Crimp Style – Female

Price:

$2.50

PN: 18-800900 SKU 18-800900 Categories , , , , Tags , , ,

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

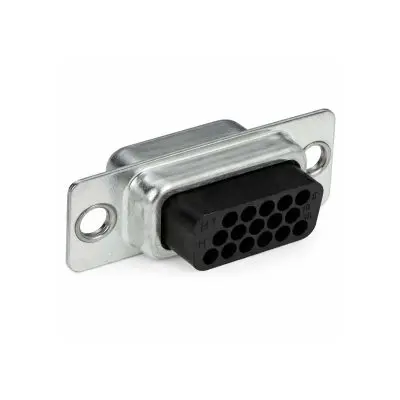

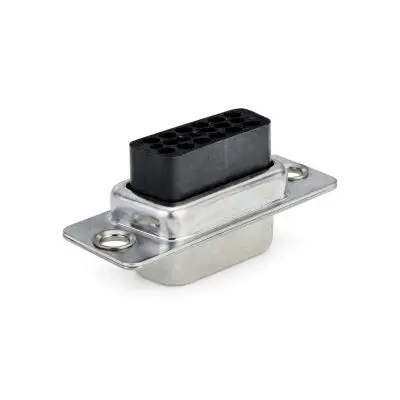

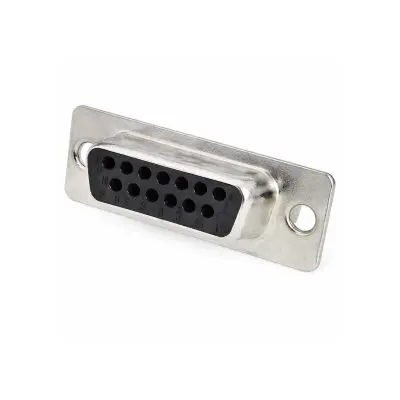

DB15HD Connector — Block Crimp Female (VGA)

High-density DB15HD (VGA-style) female block crimp connector designed for custom VGA and video/control cable terminations. The block-style crimp
insert lets you create your own cable pin-out for monitors, KVMs, extenders, and legacy VGA interfaces.

DB Hoods & Hardware
Bulk Wire

  • DB15HD female interface — High-density 15-pin D-sub jack specifically suited for VGA-style connections.
  • Block crimp termination — Crimp contacts in a block insert for secure, repeatable terminations.
  • Custom pin-out capability — Build bespoke VGA or multi-signal cables with the exact wiring your application needs.
  • D-sub shell compatible — Fits standard HD15/VGA hoods, backshells, and strain-relief hardware.
  • VGA & video use — Ideal for monitors, KVM switches, extenders, and legacy VGA-based control equipment.
Specification Detail
Connector Type DB15HD (HD15) female D-sub, VGA-style
Pin Count 15 pins, high-density 3-row layout
Termination Style Block crimp contacts (requires matching crimp tool)
Mounting Cable-end or panel pigtail with optional HD15 hood
Typical Applications VGA video, KVM switches, video extenders, legacy display/control interfaces
Use Case Custom VGA cable builds, repairs, and specialized pin-out harnesses
Why buy from Gruber Communications

  • Video & control experience — Stocked specifically for VGA, KVM, and legacy HD15 video/control applications.
  • Matched accessories — Pairs with our HD15 hoods, bulk video cable, and hardware for complete assemblies.
  • Custom build friendly — Ideal for bench techs and integrators creating bespoke VGA and multi-signal harnesses.
