Keystone – 16 Port – Feedthru Panel – 1U – Unloaded

Price:

$20.85

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

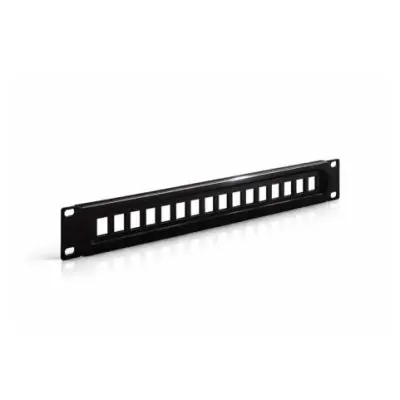

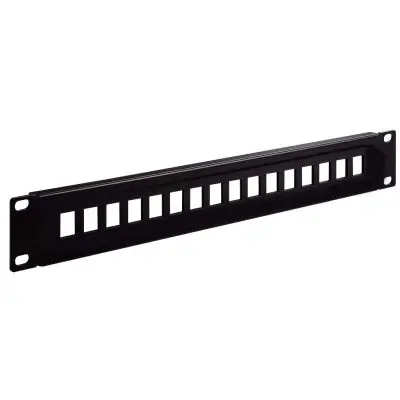

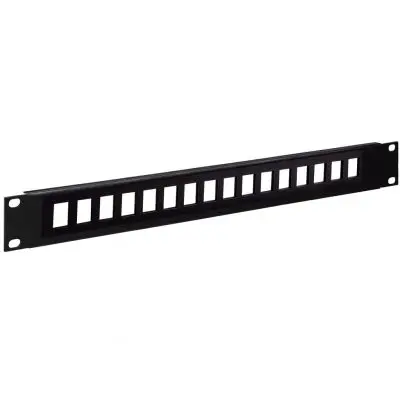

Keystone – 16 Port Feedthrough Panel – 1U Unloaded

Standard 19″ rack width • 1U height • 16 keystone ports • Black powder-coated steel

This 1U keystone 16-port feed-through patch panel is built to improve rack organization and provide a flexible solution for structured cabling in standard 19-inch rack environments. With 16 unloaded keystone openings, it allows installers to populate the panel with the exact insert types needed for Ethernet, fiber optics, CATV, HDMI, USB, audio, video, and other keystone-based connectivity applications.

Connectors Cable Management

Technical Specifications—Keystone Feed-Through Panel
Category Detail
Form Factor 1U rackmount
Width 19 inches (standard EIA rack width)
Connector Type 16-port keystone openings for snap-in jacks and couplers (unloaded)
Supported Inserts Ethernet, fiber optic, CATV, HDMI, USB, audio/video, and other keystone modules
Material Steel with black powder-coat finish
Mounting Standard rackmount flanges with screw holes
Applications Structured cabling, network racks, telecom closets, AV systems, mixed-media patching
Included Hardware Kit (Part #93-040400)

Each panel ships with a comprehensive hardware kit including two popular screw types to fit any rack or cabinet:

  • 4 Ă— 12-24 Black Panhead Phillips screws
  • 4 Ă— 10-32 Black Panhead Phillips screws
Dimensions — Standard Rack Unit Sizes
U Size Rack Spaces Height (inches) Height (cm)
1U 1 1.75″ 4.45 cm
2U 2 3.50″ 8.89 cm
4U 4 7.00″ 17.78 cm
5U 5 8.75″ 22.23 cm
8U 8 14.00″ 35.56 cm
