Neutrik TOP – etherCON to etherCON – Retractable Cable

Neutrik etherCON® TOP Retractable RJ45 Cable Connector — 17*61N8XR

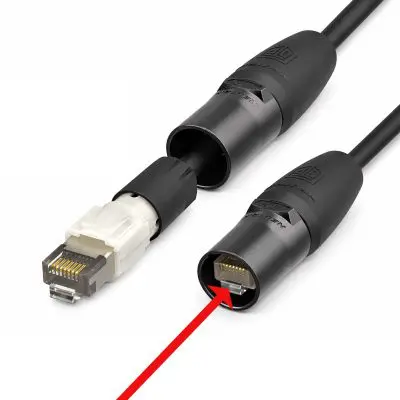

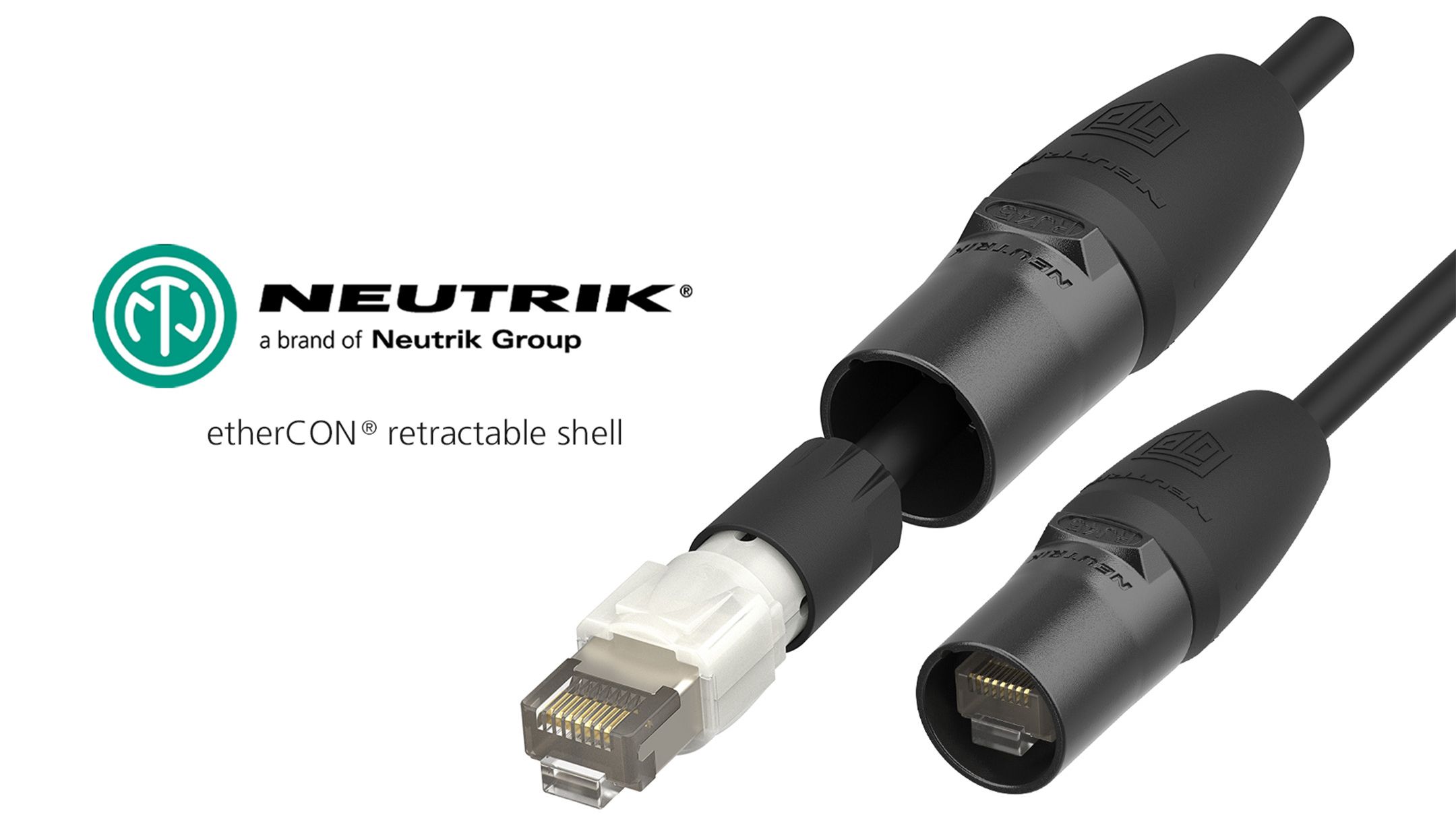

The Neutrik NE8MXR-B-TOP is a next-generation etherCON® TOP (TRUE OUTDOOR PROTECTION)
RJ45 carrier cable connector designed for demanding outdoor and industrial Ethernet applications. Its
unique retractable shell allows the connector body to fully retract, making it compatible with standard RJ45
receptacles and etherCON® jacks, while eliminating the risk and frustration of lost shells in the field.

Built around a rugged zinc die-cast shell with a chuck-type strain relief and robust TPE boot, the NE8MXR-B-TOP
delivers IP65-level protection (when mated or capped), UV resistance, and corrosion-resistant performance in
harsh environments. It is designed for non pre-assembled cables and accepts common RJ45 plugs, allowing installers
to build custom cable assemblies on site while protecting fragile RJ45 latches and contacts from damage.

Important: This carrier connector does not include an RJ45 plug; it is intended for use with user-supplied
RJ45 cable assemblies. It does not intermate with CAT6 receptacles NE8FDY-C6 and NE8FDY-C6-B.

Key Features & Benefits

• Unique retractable shell — Allows compatibility with standard RJ45 and etherCON® receptacles while preventing lost shells.
• Lockable carrier design — Provides a secure, lockable cable connection in touring, outdoor, and industrial environments.
• Rugged die-cast housing — Zinc die-cast shell with chuck-style strain relief protects fragile RJ45 plugs from mechanical stress.
• TRUE OUTDOOR PROTECTION — IP65 ingress protection when mated or when used with sealing cap (SCMX-TOP), plus UV F2-resistant materials.
• Flame resistant & halogen free — V0-rated connector built from halogen-free materials to minimize toxic or corrosive gas release.
• Supports 5.5–8.0 mm cables — Accommodates a wide range of jacketed Ethernet cables up to 0.31″ (8 mm) OD.
• For non pre-assembled cables — Ideal for field-terminating conventional RJ45 patch cables into a ruggedized etherCON® carrier.

Technical Highlights

Use the NE8MXR-B-TOP wherever standard RJ45 plugs need tour-grade mechanical protection and TRUE OUTDOOR PROTECTION—without
sacrificing compatibility with existing RJ45 or etherCON® jacks.

Whether you’re wiring a mobile production rack, a fixed install, or a festival stage, Gruber Communications’ Neutrik etherCON® cable assemblies deliver tour-ready mechanical strength, clean network performance, and the flexibility to support your most demanding AV and data workflows.
