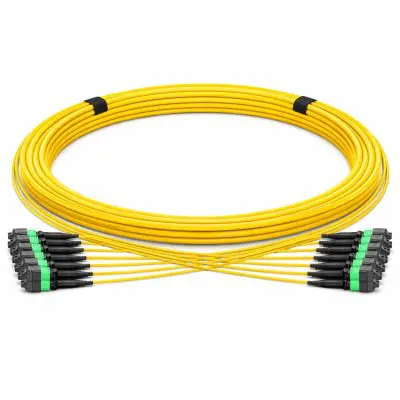

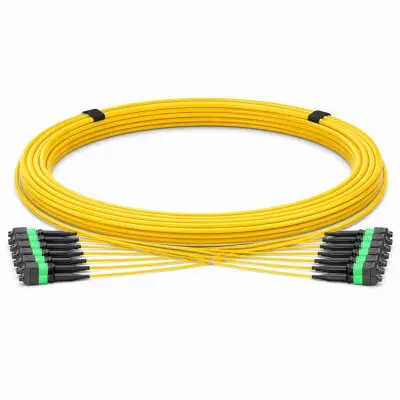

This OS2 MTP® trunk fiber optic cable series is built for high-density data center, telecom, and structured cabling environments where long-distance performance, scalable fiber counts, and rugged cable construction matter. Featuring OS2 9/125 single-mode fiber, MTP® female-to-female connectivity, and a durable OFNP plenum-rated double jacket, these trunk cables are ideal for backbone, horizontal, and zone distribution applications.

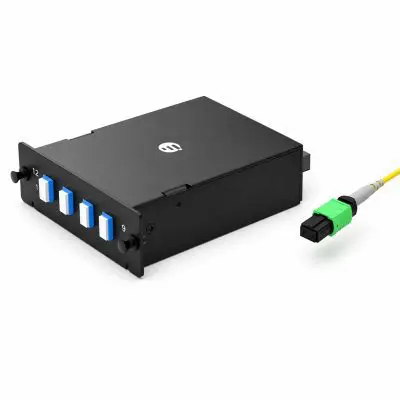

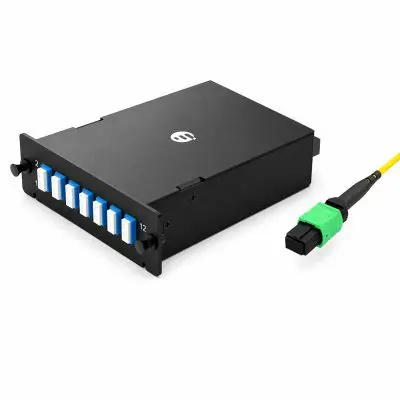

Available in 12, 24, 36, 48, 72, 96, and 144 fiber configurations, these factory-terminated assemblies support high-density backbone links, MTP® cassette interconnects, trunk extensions, and long-reach optical network infrastructure. The double-jacket construction helps improve durability and crush resistance for longer cable runs and dense routing paths.
Connectors Cable Mgmt Tutorial
| Fiber Count | Typical Use |
|---|---|
| 12 Fiber | Small single-mode trunk links, cassette feeds, and compact backbone connections |
| 24 Fiber | Higher-density cabinet-to-cabinet or row-to-row trunking |
| 36 Fiber | Expanded backbone capacity with multiple 12-fiber groupings |
| 48 Fiber | Dense patching fields and multi-cassette distribution |
| 72 Fiber | Large facility backbone runs and aggregation areas |
| 96 Fiber | High-capacity distribution and scalable network expansion |
| 144 Fiber | Maximum-density trunking for major backbone and zone distribution areas |
| Specification | Detail |
|---|---|
| Product Type | MTP® trunk fiber optic cable |

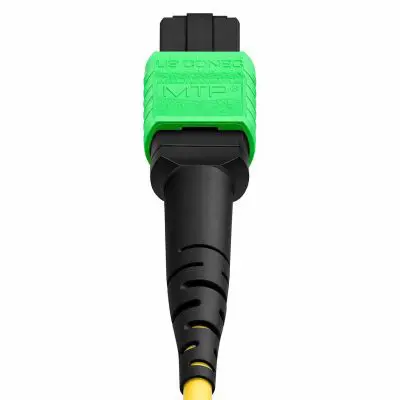

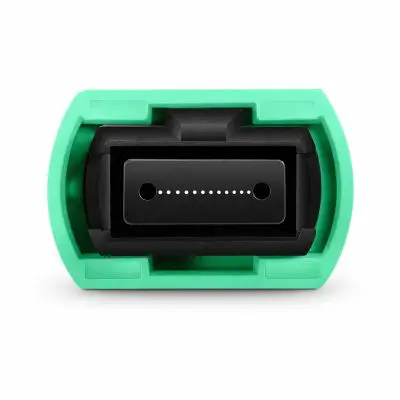

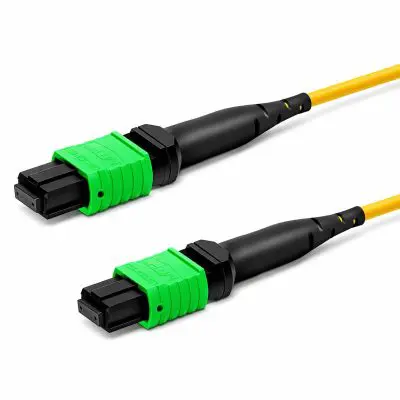

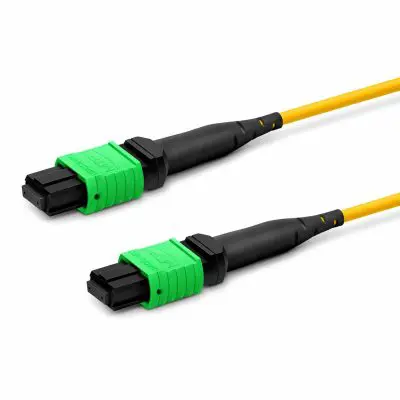

| Connector A | MTP® female |
| Connector B | MTP® female |
| Fiber Type | OS2 9/125 µm single-mode |
| Fiber Count | 12 / 24 / 36 / 48 / 72 / 96 / 144 fibers |
| Polish Type | APC |

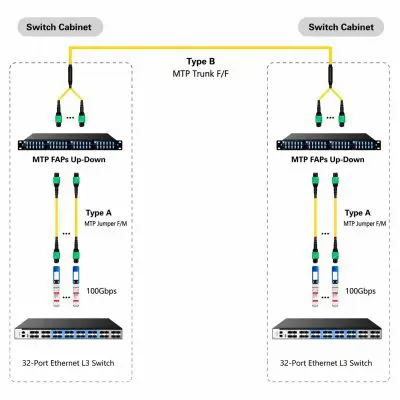

| Polarity | Type B trunk configuration |
| Wavelength | 1310 / 1550 nm |

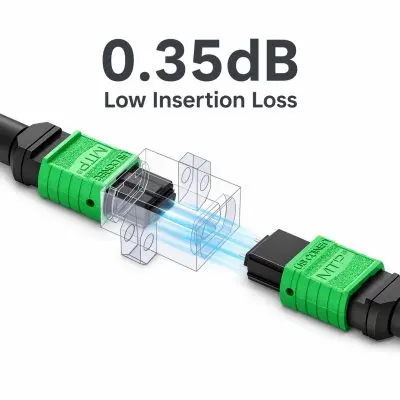

| Insertion Loss | Low-loss factory-tested assembly |
| Jacket Rating | OFNP plenum rated |

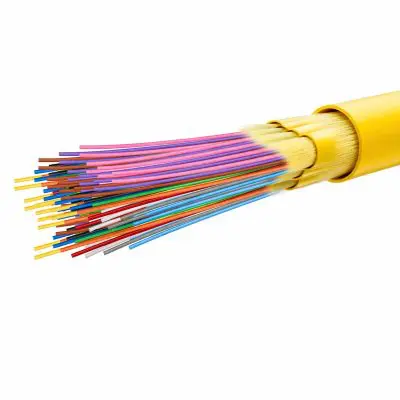

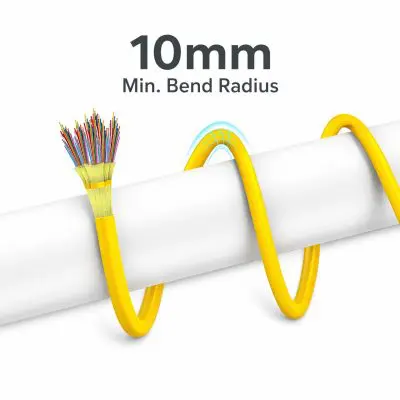

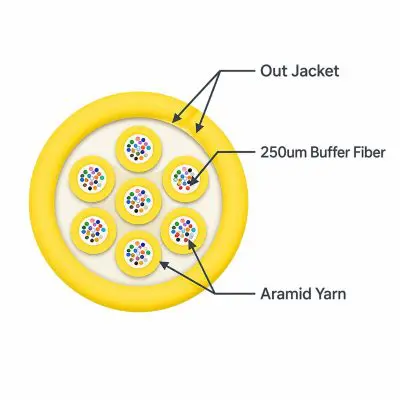

| Cable Structure | Double jacket |
| Jacket Color | Yellow |

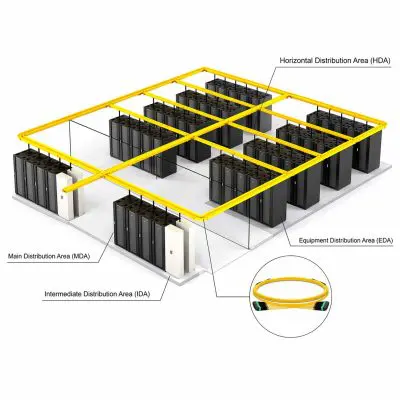

| Use Case | Data centers, backbone cabling, MTP® cassette interconnects, horizontal distribution, zone distribution, and long-distance optical links |
These OS2 MTP® trunk cables are available in multiple fiber counts and use an OFNP double-jacket construction. Confirm your required fiber count, polarity method, connector gender, polish type, and cassette or panel configuration before ordering to ensure proper system compatibility.
