$144.68

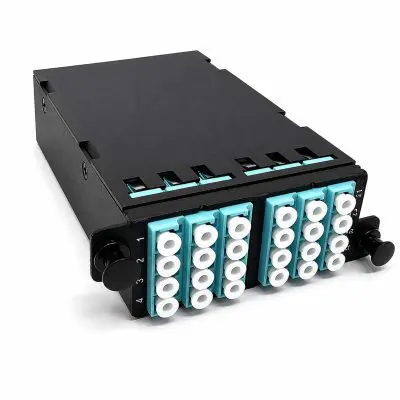

This OM4 MPO 24 Fiber Super High Density Cassette provides a compact, high-density transition from two 12-fiber MPO male trunk connections to 24 LC connections, arranged as 12 duplex LC adapters. It is designed for multimode OM4 fiber installations where fast deployment, clean organization, and efficient rack space usage are required.

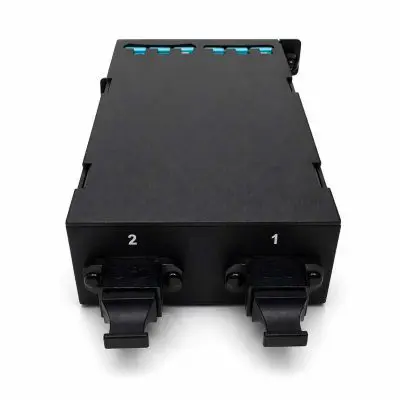

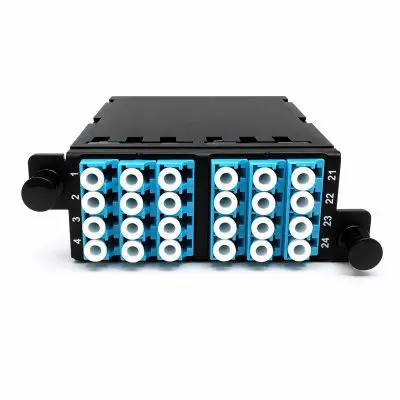

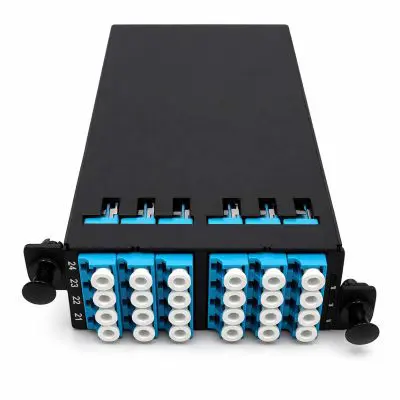

On the rear of the cassette, two 12-fiber male MPO connectors accept compatible female MPO/MTP trunk cable connections. On the front, the cassette presents 24 individual LC connections for patching out with standard duplex or simplex LC fiber optic patch cables to equipment such as SFP modules, switches, transceivers, or fiber optic media converters.
MTP Cables Cable Mgmt Tutorial
| Product Type | Super High Density MPO to LC Fiber Cassette |
| Fiber Type | Multimode OM4 |
| Fiber Count | 24 Fiber |
| Rear Connection | 2 x 12-Fiber MPO Male Connectors |
| Front Connections | 24 LC Connections / 12 Duplex LC Adapters |
| Polarity | Type A / Straight Through |
| Cassette Style | Super High Density SHD Cassette |
| Application | Data centers, corporate campuses, equipment rooms, high-density fiber patching, rackmount fiber distribution |
This Super High Density product line is designed to accommodate large fiber strand counts in compact rack spaces. The 5-panel 1U SHD rackmount enclosure can house up to 120 fibers, while the 14-panel 2U SHD rackmount enclosure can house up to 336 fibers. Blank panels are available for unused slots.
| 1U SHD Enclosure | 5-panel rackmount enclosure; supports up to 120 fibers |
| 2U SHD Enclosure | 14-panel rackmount enclosure; supports up to 336 fibers |
| Unused Slots | Blank panels available for open SHD chassis positions |
This cassette has male MPO connectors and requires a cable assembly with female MPO/MTP connectors. This cassette is designed to fit Super High Density SHD fiber enclosures.
