OM4 MTP 48 Fibers — Hybrid Fiber Trunk Cable — 6 LC UPC Duplex Uniboot — Type B

d0aa1008-3e07-4951-a4d3-fc3676216a6e copy
f5d32570-2f11-4fb0-ba69-40167246e1b1 copy
5bbaf504-e782-4481-a658-22233ed90c04 copy
98dfc335-9fcf-4419-a5d6-a48ca0f9fd82 copy
a43f6b2e-a2f9-4d0f-9f5c-d236d99f6d28 copy
Medallion
Made In USA
Lifetime-Warrranty-Optimized
d0aa1008-3e07-4951-a4d3-fc3676216a6e copy
f5d32570-2f11-4fb0-ba69-40167246e1b1 copy
5bbaf504-e782-4481-a658-22233ed90c04 copy
98dfc335-9fcf-4419-a5d6-a48ca0f9fd82 copy
a43f6b2e-a2f9-4d0f-9f5c-d236d99f6d28 copy
Medallion
Made In USA
Lifetime-Warrranty-Optimized

This product is currently out of stock and unavailable.

Price:

Call for Price

PN: 17-890490-XXXFP-MTP SKU 17-890490-XXXFP-MTP Category Tags , , , , , ,

Unprecedented Lifetime Warranty on all the products we produce.

California PROP 65 Warning

For California Residents Only: California Proposition 65 Warning
WARNING: Some products may contain chemicals that are known to the State of California to cause cancer or reproductive harm.

Proposition 65, the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires businesses to provide warnings to Californians about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm. The warnings are intended to help California consumers make informed decisions about their exposure to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more than 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

Additional Information about California Proposition 65
For background on California Proposition 65 warnings, see https://www.p65warnings.ca.gov/new-proposition-65-warnings.

California Proposition 65 and its regulations are posted at https://oehha.ca.gov/proposition-65/law/proposition-65-law-and-regulations

CALIFORNIA WARNING

Description:

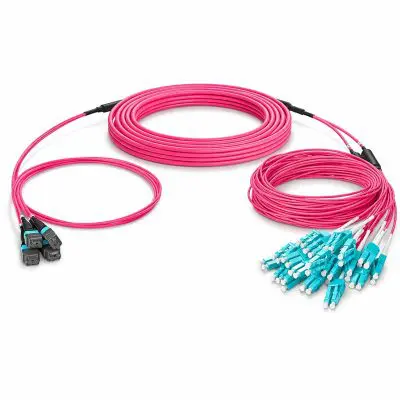

OM4 MTP® 48 — Hybrid Fiber Trunk Cable — 6 LC UPC Duplex Uniboot — Type B
MTP®-12 UPC Female to 6 LC UPC Duplex Uniboot  |  48 Fibers  |  OM4 Multimode  |  OFNP Plenum

This OM4 MTP® 48-fiber hybrid trunk cable is built for high-density multimode fiber applications where an MTP® backbone needs to transition directly into LC duplex connections. Featuring a MTP®-12 UPC female connector on one side and 6 LC UPC duplex uniboot connectors on the breakout side, this assembly is ideal for cabinet-to-cabinet runs, data centers, enterprise network rooms, and plenum-rated installations.

Why this cable is used
  • Hybrid trunk design — Transitions from MTP® backbone cabling to LC duplex equipment-side connections.
  • High-density LC breakout — 6 LC UPC duplex uniboot connectors help keep patching areas cleaner and more organized.
  • OM4 multimode performance — Designed for high-speed multimode fiber applications in modern data center and enterprise environments.
  • Cabinet-to-cabinet routing — Excellent for structured fiber runs between cabinets, fiber enclosures, and network equipment.
  • Type B polarity — Commonly used in structured MTP®/MPO trunk cabling systems.
Our solution
  • US Conec MTP® connectors — Premium connector hardware for reliable mating and repeatable performance.
  • Optimal 0.20dB low insertion loss — Helps maintain signal integrity across high-density multimode fiber links.
  • Bend-insensitive fiber — 7.5mm minimum bend radius supports tight routing inside cabinets, trays, and raceways.

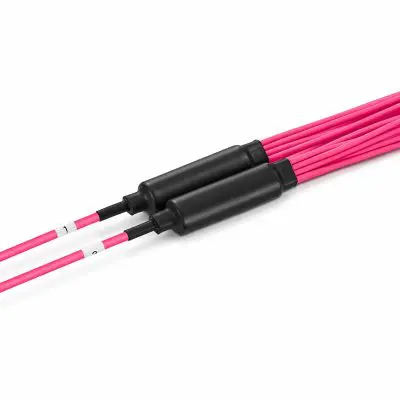

  • 2.0mm breakout legs — Small-diameter breakouts save space in congested high-density patching areas.
  • Color-coded connector boots — Makes connector identification faster during installation and service.
  • OFNP plenum jacket — Fire safety-rated for use in plenum air spaces.
  • Double jacket construction — Provides a durable hybrid trunk cable build for demanding installation environments.

MTP Cables Cable Mgmt Tutorial

Cable Type MTP® hybrid fiber trunk cable
Fiber Count 48 fibers

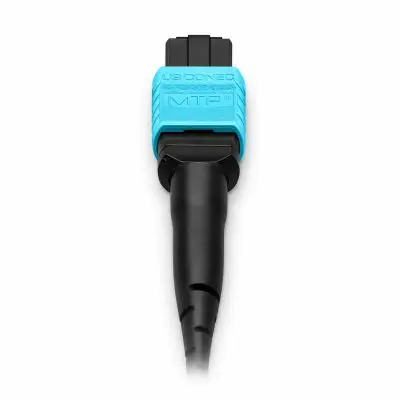

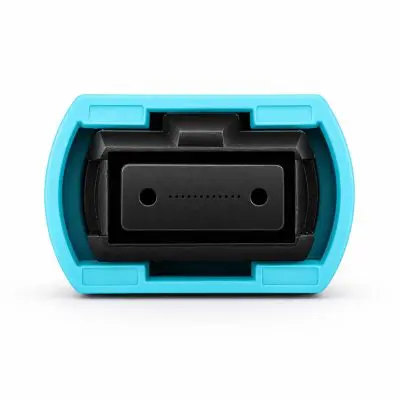

MTP® Side MTP®-12 UPC female

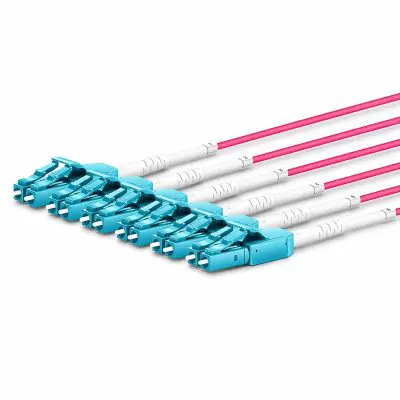

LC Side 6 LC UPC duplex uniboot connectors
Fiber Type Multimode OM4
Polarity Type B
Insertion Loss 0.20dB max low insertion loss
Jacket Rating OFNP plenum-rated double jacket
Minimum Bend Radius 7.5mm
Breakout Diameter 2.0mm small-diameter breakout
Recommended Use High-density MTP® to LC multimode cabinet-to-cabinet applications
Service & application

This hybrid trunk cable is designed for structured multimode fiber systems where MTP®/MPO backbone cabling needs to break out directly into LC duplex connections. The 48-fiber construction and LC uniboot breakout help reduce cable clutter while supporting clean routing in high-density network environments.

Installation Tip

Always verify polarity type, MTP® connector gender, fiber count, LC breakout layout, and equipment-side interface before installation. Hybrid MTP® to LC assemblies must match the intended cassette, enclosure, or direct-connect architecture.

Need a Longer Length?

Need this cable in a longer run or custom configuration? Contact us and we can help match the right length, polarity, connector type, LC breakout style, and fiber count for your installation.

Technical Support

Need help matching this hybrid trunk cable to a cassette, enclosure, switch, transceiver, or existing MTP®/MPO fiber system? Our fiber specialists can help confirm polarity, connector gender, fiber type, LC breakout format, and application fit before you order.
