OM4 MTP 48 Fibers — Multi-Mode Fiber Trunk Cable — UPC Male — Type A

dbf0202b-e684-4473-847b-aca3edb172f3 copy
39e00349-ae78-40a3-8491-5e9fb82f7f3f copy
1a631a5b-98c0-497e-a078-a5f1b23f2892 copy
74463cad-9289-4f0d-9f0a-8515da61074d copy
Medallion
Made In USA
Lifetime-Warrranty-Optimized
dbf0202b-e684-4473-847b-aca3edb172f3 copy
39e00349-ae78-40a3-8491-5e9fb82f7f3f copy
1a631a5b-98c0-497e-a078-a5f1b23f2892 copy
74463cad-9289-4f0d-9f0a-8515da61074d copy
Medallion
Made In USA
Lifetime-Warrranty-Optimized

Price:

Call for Price

PN: 17-890410-XXXMP-MTP SKU 17-890410-XXXMP-MTP Category Tags , , , , , ,

Unprecedented Lifetime Warranty on all the products we produce.

California PROP 65 Warning

For California Residents Only: California Proposition 65 Warning
WARNING: Some products may contain chemicals that are known to the State of California to cause cancer or reproductive harm.

Proposition 65, the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires businesses to provide warnings to Californians about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm. The warnings are intended to help California consumers make informed decisions about their exposure to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more than 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

Additional Information about California Proposition 65
For background on California Proposition 65 warnings, see https://www.p65warnings.ca.gov/new-proposition-65-warnings.

California Proposition 65 and its regulations are posted at https://oehha.ca.gov/proposition-65/law/proposition-65-law-and-regulations

CALIFORNIA WARNING

Description:

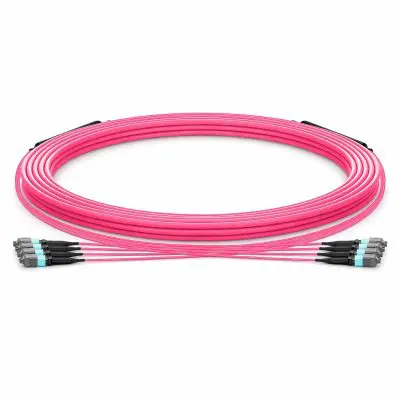

OM4 MTP® 48 — Multi-Mode Fiber Trunk Cable — UPC Male — Type A

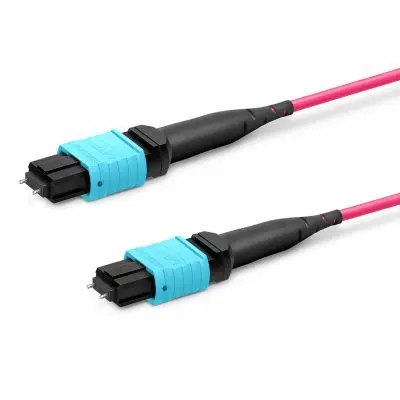

MTP®-12 UPC Male to MTP®-12 UPC Male  |  48 Fibers  |  OM4 Multimode  |  OFNP Plenum

This OM4 MTP® 48-fiber trunk cable is built for high-density multimode fiber backbone applications where clean routing, low insertion loss, and dependable performance are required. Featuring MTP®-12 UPC male connectors on both ends, this assembly is ideal for cabinet-to-cabinet runs, data centers, enterprise network rooms, and plenum-rated installations.

Why this cable is used
  • High-density trunk design — Consolidates 48 fibers into a clean, organized cable assembly.
  • Cabinet-to-cabinet routing — Excellent for structured fiber runs between racks, cabinets, and fiber distribution points.
  • OM4 multimode performance — Designed for high-speed multimode fiber applications in modern data center and enterprise environments.

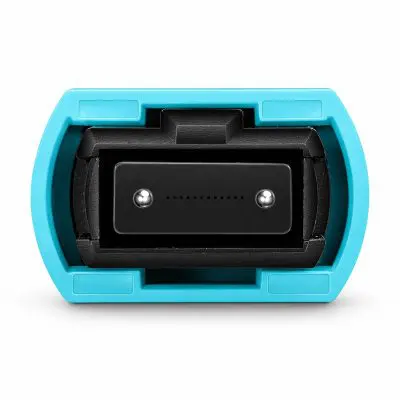

  • Pinned male MTP® connectors — Designed for systems requiring male MTP®/MPO trunk interfaces.
  • Type A polarity — Straight-through polarity commonly used in structured MTP®/MPO cabling systems.
Our solution

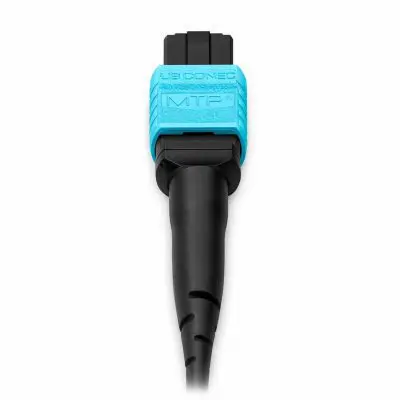

  • US Conec MTP® connectors — Premium connector hardware for reliable mating and repeatable performance.
  • Optimal 0.20dB low insertion loss — Helps maintain signal integrity across high-density fiber links.
  • Bend-insensitive fiber — 7.5mm minimum bend radius supports tight routing inside cabinets, trays, and raceways.
  • 2.0mm breakout legs — Small-diameter breakouts save space in congested high-density patching areas.
  • Color-coded connector boots — Makes connector identification faster during installation and service.
  • OFNP plenum jacket — Fire safety-rated for use in plenum air spaces.
  • Double jacket construction — Provides a durable trunk cable build for demanding installation environments.

MTP Cables Cable Mgmt Tutorial

Cable Type MTP® fiber trunk cable
Fiber Count 48 fibers
Connector Ends MTP®-12 UPC male to MTP®-12 UPC male
Fiber Type Multimode OM4
Polarity Type A
Insertion Loss 0.20dB max low insertion loss
Jacket Rating OFNP plenum-rated double jacket
Minimum Bend Radius 7.5mm
Breakout Diameter 2.0mm small-diameter breakout
Recommended Use High-density cabinet-to-cabinet multimode fiber backbone applications
Service & application

This cable is designed for structured multimode fiber systems where MTP®/MPO links need to be routed efficiently between cabinets, enclosures, or fiber distribution hardware. The 48-fiber construction helps reduce cable clutter while the compact breakout design supports airflow and serviceability in high-density environments.

Installation Tip

Always verify polarity type, connector gender, fiber count, and MTP®-12 male compatibility before installation. MTP®/MPO systems are polarity-sensitive, and male pinned connectors must be matched with the correct female MTP®/MPO mating hardware.

Need a Longer Length?

Need this cable in a longer run or custom configuration? Contact us and we can help match the right length, polarity, connector type, and fiber count for your installation.

Technical Support

Need help matching this trunk cable to a cassette, enclosure, or existing MTP®/MPO fiber system? Our fiber specialists can help confirm polarity, connector gender, fiber type, fiber count, and application fit before you order.
