OM4 MTP — Multi-Mode Fiber Trunk Cable — UPC Female — Type B

8400d311-b012-42e6-9700-6c9c7c823152 copy
37f3bb67-c39b-43cb-8b95-92cbe242d916 copy
00cf724e-319c-4d73-9f02-8a3074f90d75 copy
78e92421-7247-47c9-a662-5cdff026ff57 copy
Medallion
Made In USA
Lifetime-Warrranty-Optimized
8400d311-b012-42e6-9700-6c9c7c823152 copy
37f3bb67-c39b-43cb-8b95-92cbe242d916 copy
00cf724e-319c-4d73-9f02-8a3074f90d75 copy
78e92421-7247-47c9-a662-5cdff026ff57 copy
Medallion
Made In USA
Lifetime-Warrranty-Optimized

Price:

Price range: $234.58 through $3,079.42

PN: 17-890340-XXXFP-MTP SKU 17-890340-XXXFP-MTP Category Tags , , , , , ,

Unprecedented Lifetime Warranty on all the products we produce.

California PROP 65 Warning

For California Residents Only: California Proposition 65 Warning
WARNING: Some products may contain chemicals that are known to the State of California to cause cancer or reproductive harm.

Proposition 65, the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires businesses to provide warnings to Californians about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm. The warnings are intended to help California consumers make informed decisions about their exposure to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more than 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

Additional Information about California Proposition 65
For background on California Proposition 65 warnings, see https://www.p65warnings.ca.gov/new-proposition-65-warnings.

California Proposition 65 and its regulations are posted at https://oehha.ca.gov/proposition-65/law/proposition-65-law-and-regulations

CALIFORNIA WARNING

Description:

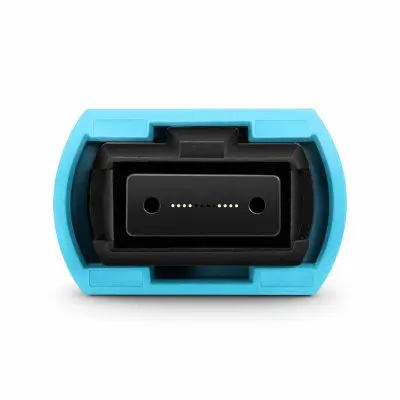

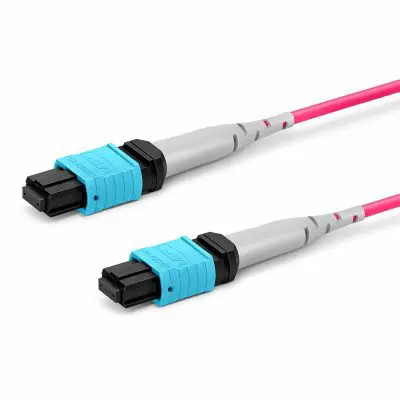

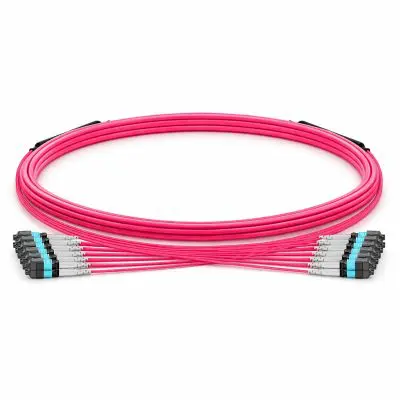

OM4 MTP® — Multi-Mode Fiber Trunk Cable — UPC Female — Type B
MTP®-8 UPC Female to MTP®-8 UPC Female | OM4 Multimode | OFNP Plenum

This OM4 MTP® fiber trunk cable is built for high-density multimode fiber backbone applications where clean routing, low insertion loss, and dependable performance are required. Featuring MTP®-8 UPC female connectors on both ends, this assembly is ideal for cabinet-to-cabinet runs, data centers, enterprise network rooms, and plenum-rated installations.

Why this cable is used
  • High-density trunk design — Consolidates fibers into a clean, organized cable assembly.
  • Cabinet-to-cabinet routing — Excellent for structured fiber runs between racks, cabinets, and fiber distribution points.
  • OM4 multimode performance — Designed for high-speed multimode fiber applications in modern data center and enterprise environments.
  • Type B polarity — Commonly used in structured MTP®/MPO trunk cabling systems.
Our solution

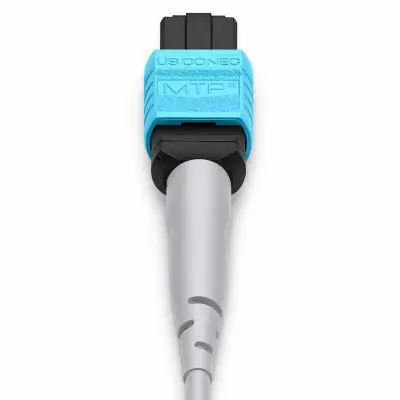

  • US Conec MTP® connectors — Premium connector hardware for reliable mating and repeatable performance.
  • Optimal 0.20dB low insertion loss — Helps maintain signal integrity across high-density fiber links.
  • Bend-insensitive fiber — 7.5mm minimum bend radius supports tight routing inside cabinets, trays, and raceways.
  • 2.0mm breakout legs — Small-diameter breakouts save space in congested high-density patching areas.
  • Color-coded connector boots — Makes connector identification faster during installation and service.
  • OFNP plenum jacket — Fire safety-rated for use in plenum air spaces.
  • Double jacket construction — Provides a durable trunk cable build for demanding installation environments.

MTP Cables Cable Mgmt Tutorial

Cable Type MTP® fiber trunk cable
Fiber Count 96 Fibers | 72 Fibers | 48 Fibers | 32 Fibers | 24 Fibers | 16 Fibers | 8 Fibers
Connector Ends MTP®-8 UPC female to MTP®-8 UPC female
Fiber Type Multimode OM4
Polarity Type B
Insertion Loss 0.20dB max low insertion loss
Jacket Rating OFNP plenum-rated double jacket
Minimum Bend Radius 7.5mm
Breakout Diameter 2.0mm small-diameter breakout
Recommended Use High-density cabinet-to-cabinet multimode fiber backbone applications
Service & application

This cable is designed for structured fiber systems where multiple MTP®/MPO links need to be routed efficiently between cabinets or fiber distribution hardware. The fiber construction reduces cable clutter while the compact breakout design helps preserve airflow and serviceability in high-density environments.

Installation Tip

Always verify polarity type, connector gender, fiber count, and MTP®-8 compatibility before installation. MTP®/MPO systems are polarity-sensitive, and matching the trunk cable to the cassette or patching architecture is critical for proper link operation.

Technical Support

Need help matching this trunk cable to a cassette, enclosure, or existing MTP®/MPO fiber system? Our fiber specialists can help confirm polarity, connector gender, fiber type, fiber count, and application fit before you order.
