OS2 MTP 32 Fibers — Single-Mode Fiber Trunk Cable — APC Male — Type B

64db0aff-a67d-4db0-9c2b-01e4305c85dc copy
a58cf55e-6aed-45bb-8f74-c7940eddc600 copy
57166aa5-1412-4615-b89c-65551180e5f1 copy
641d6bc4-b75a-4daa-8360-0676db51d917 copy
Medallion
Made In USA
Lifetime-Warrranty-Optimized
64db0aff-a67d-4db0-9c2b-01e4305c85dc copy
a58cf55e-6aed-45bb-8f74-c7940eddc600 copy
57166aa5-1412-4615-b89c-65551180e5f1 copy
641d6bc4-b75a-4daa-8360-0676db51d917 copy
Medallion
Made In USA
Lifetime-Warrranty-Optimized

This product is currently out of stock and unavailable.

Price:

Call for Price

PN: 17-890460-XXXMY-MTP SKU 17-890460-XXXMY-MTP Category Tags , , , , , ,

Unprecedented Lifetime Warranty on all the products we produce.

California PROP 65 Warning

For California Residents Only: California Proposition 65 Warning
WARNING: Some products may contain chemicals that are known to the State of California to cause cancer or reproductive harm.

Proposition 65, the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires businesses to provide warnings to Californians about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm. The warnings are intended to help California consumers make informed decisions about their exposure to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more than 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

Additional Information about California Proposition 65
For background on California Proposition 65 warnings, see https://www.p65warnings.ca.gov/new-proposition-65-warnings.

California Proposition 65 and its regulations are posted at https://oehha.ca.gov/proposition-65/law/proposition-65-law-and-regulations

CALIFORNIA WARNING

Description:

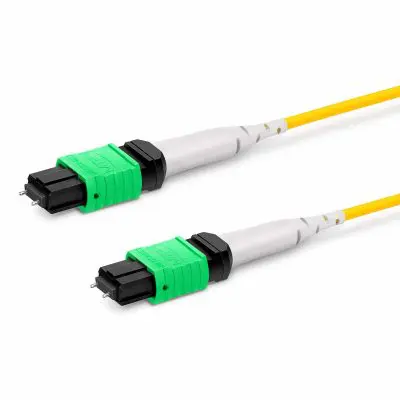

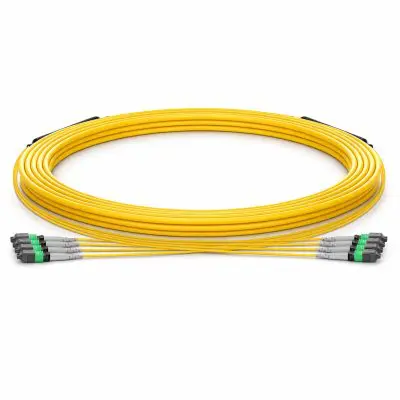

OS2 MTP® 32 — Single-Mode Fiber Trunk Cable — APC Male — Type B
MTP®-8 APC Male to MTP®-8 APC Male  |  32 Fibers  |  OS2 Single Mode  |  OFNP Plenum

This OS2 MTP® 32-fiber trunk cable is built for high-density single-mode fiber backbone applications where clean routing, low insertion loss, and dependable long-distance performance are required. Featuring MTP®-8 APC male connectors on both ends, this assembly is ideal for cabinet-to-cabinet runs, data centers, enterprise network rooms, and plenum-rated installations.

Why this cable is used
  • High-density trunk design — Consolidates 32 fibers into a clean, organized cable assembly.
  • Cabinet-to-cabinet routing — Excellent for longer structured fiber runs between racks, cabinets, and fiber distribution points.
  • OS2 single-mode performance — Designed for long-distance, high-performance fiber links in data center and enterprise environments.
  • APC connector polish — Angled physical contact connectors help reduce back reflection in single-mode fiber systems.

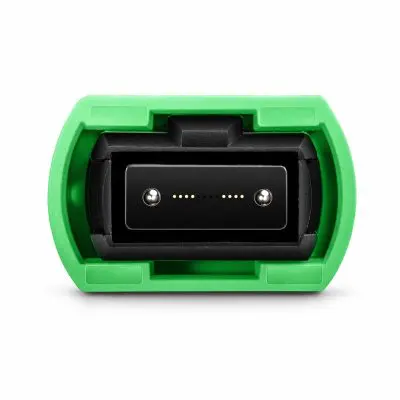

  • Pinned male MTP® connectors — Designed for systems requiring male MTP®/MPO trunk interfaces.
  • Type B polarity — Commonly used in structured MTP®/MPO trunk cabling systems.
Our solution

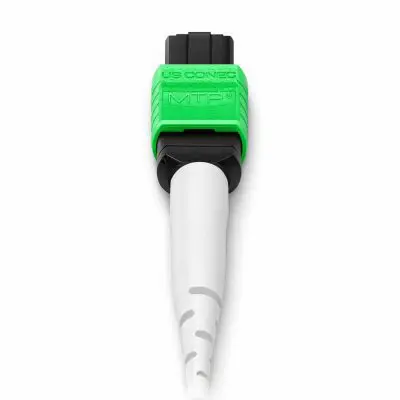

  • US Conec MTP® connectors — Premium connector hardware for reliable mating and repeatable performance.
  • Optimal 0.35dB low insertion loss — Helps maintain signal integrity across high-density single-mode fiber links.
  • G.657.A1 bend-insensitive fiber — 10mm minimum bend radius supports tighter routing inside cabinets, trays, and raceways.
  • 2.0mm breakout legs — Small-diameter breakouts save space in congested high-density patching areas.
  • Color-coded connector boots — Makes connector identification faster during installation and service.
  • OFNP plenum jacket — Fire safety-rated for use in plenum air spaces.
  • Double jacket construction — Provides a durable trunk cable build for demanding installation environments.

MTP Cables Cable Mgmt Tutorial

Cable Type MTP® fiber trunk cable
Fiber Count 32 fibers
Connector Ends MTP®-8 APC male to MTP®-8 APC male
Fiber Type Single Mode OS2 / G.657.A1 bend-insensitive fiber
Polarity Type B
Insertion Loss 0.35dB max low insertion loss
Jacket Rating OFNP plenum-rated double jacket
Minimum Bend Radius 10mm
Breakout Diameter 2.0mm small-diameter breakout
Recommended Use High-density cabinet-to-cabinet single-mode fiber backbone applications
Service & application

This cable is designed for structured single-mode fiber systems where MTP®/MPO links need to be routed efficiently between cabinets, enclosures, or fiber distribution hardware. The 32-fiber construction helps reduce cable clutter while the compact breakout design supports airflow and serviceability in high-density environments.

Installation Tip

Always verify polarity type, connector gender, fiber count, and MTP®-8 APC compatibility before installation. MTP®/MPO systems are polarity-sensitive, and male pinned connectors must be matched with the correct female MTP®/MPO mating hardware.

Need a Longer Length?

Need this cable in a longer run or custom configuration? Contact us and we can help match the right length, polarity, connector type, and fiber count for your installation.

Technical Support

Need help matching this trunk cable to a cassette, enclosure, or existing MTP®/MPO fiber system? Our fiber specialists can help confirm polarity, connector gender, fiber type, fiber count, and application fit before you order.
