Tutorial — Mini 6 Category Cables

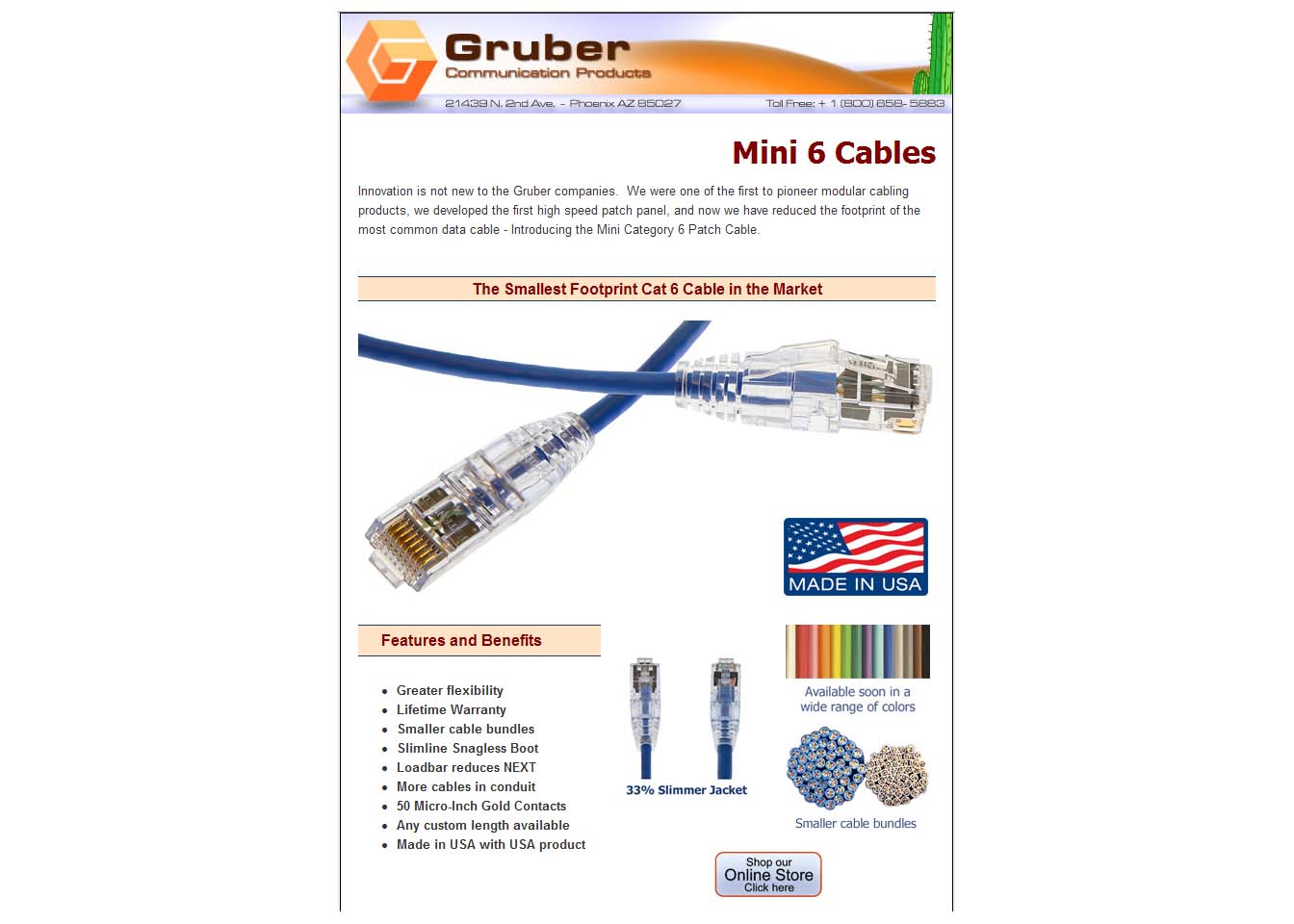

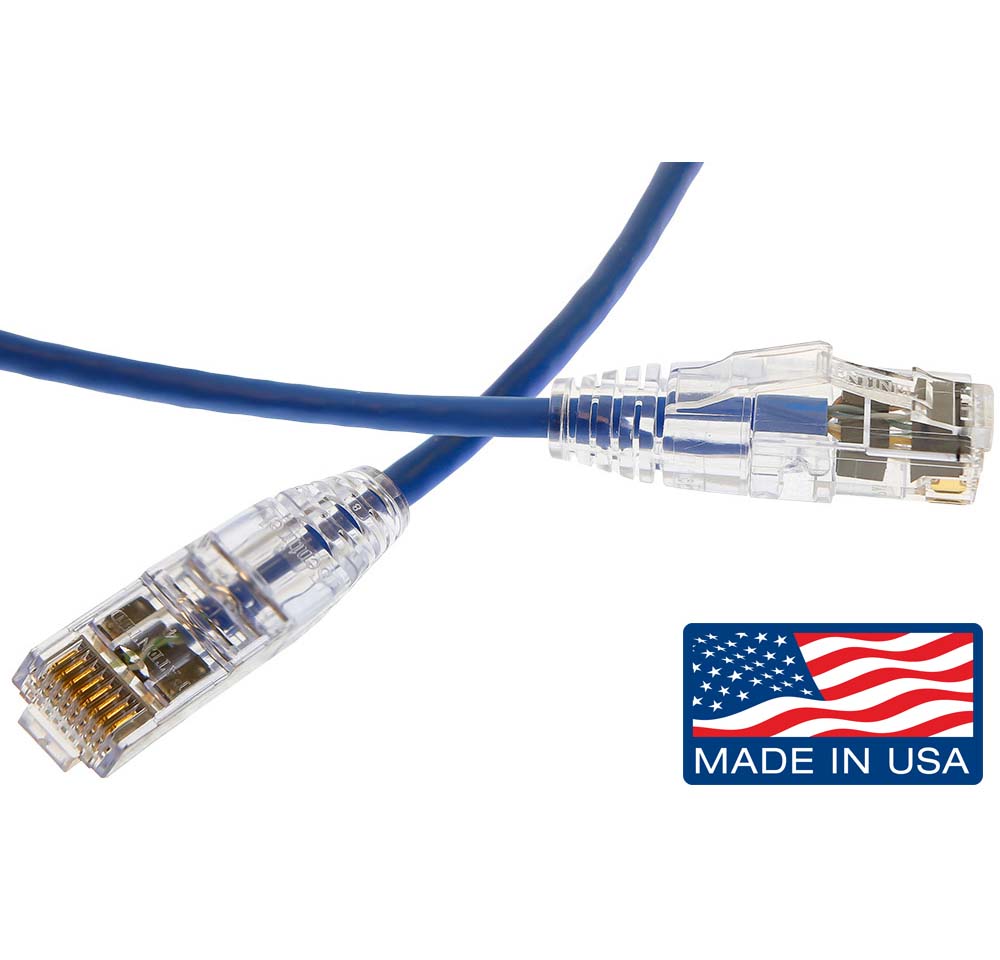

Our Mini 6 patch cords are engineered to be 30% thinner than standard Cat6 cables. The slimmer OD means tighter routing, smaller cable bundles, and faster, cleaner installs—especially in high-density racks, horizontal managers, and crowded pathways.

This tutorial walks through best practices for planning, dressing, and testing Mini 6 so you can realize the full benefits without sacrificing performance.

Why Mini 6

• Smaller bundles — 33% thinner OD reduces bulk in managers and under-floor trays.

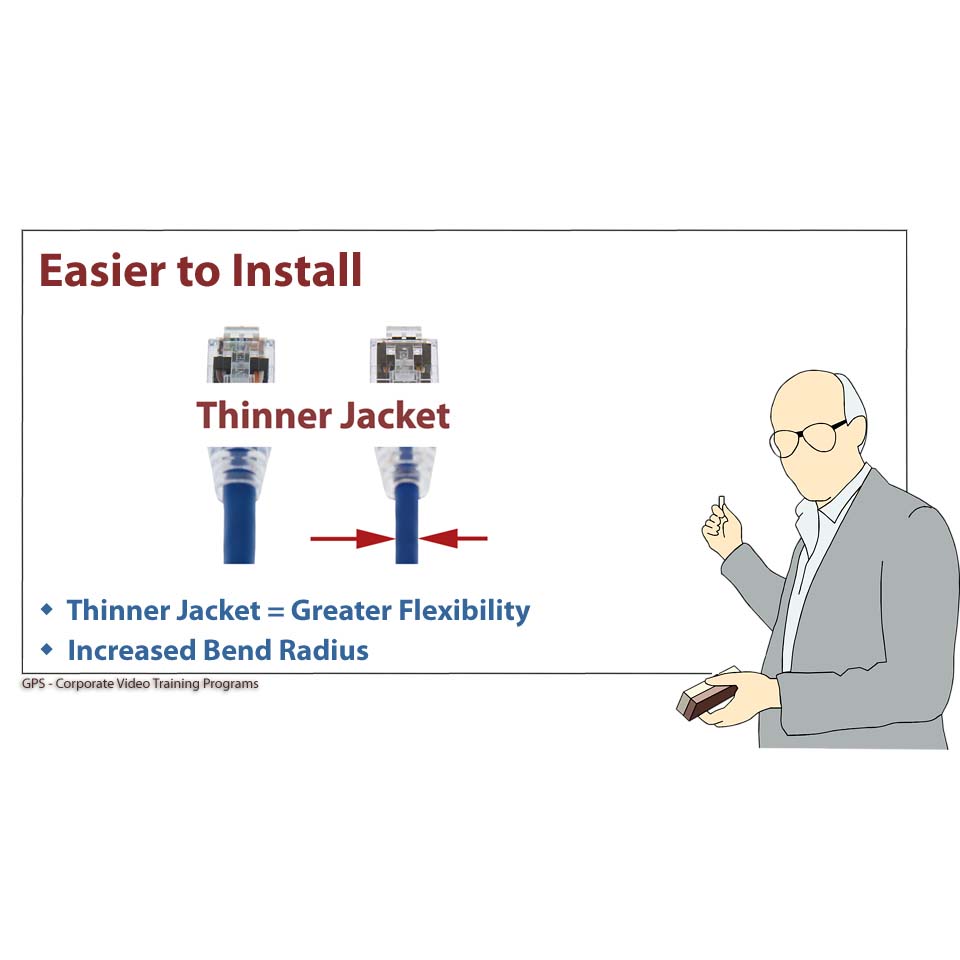

• Easier installation — lighter pulls, tighter turns, and simpler pathway sharing with power and fiber separators.
• Higher rack density — improves access to ports and labeling in 1U/2U panels.
• Better airflow — slimmer looms reduce blockage in front-of-rack intakes.
• Clean cable dressing — neater radii in vertical/horizontal managers and lacing bars.

What you’ll learn

• Pathway planning — sizing managers and tray fill with slimmer cables.
• Bend-radius discipline — maintaining spec while taking advantage of the smaller OD.
• Bundling & strain relief — Velcro vs. ties, anchor points, and service loops.
• Panel layout tips — color-coding, label visibility, and MAC (moves/adds/changes) speed.
• Verification — continuity/certification checks and documenting results.
