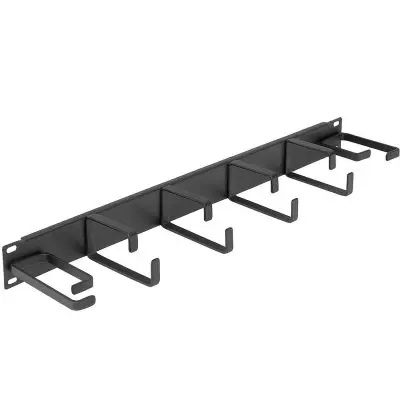

7-Ring – Horizontal-Vertical Cable Management Panel – 1U

Horizontal 4-Ring & 2-Ring Vertical Cable Management Panel — 1U — 19″

The Horizontal 4-Ring & 2-Ring Vertical Cable Management Panel provides flexible cable organization within standard 19-inch racks and cabinets. Featuring four horizontal cable rings and two vertical routing rings, this 1U panel allows installers to manage patch cords, fiber jumpers, and network cabling while maintaining clean and structured cable paths.

Constructed with a durable 16-gauge steel base and reinforced carbon steel cable rings, the panel is finished with a sleek satin black powder coat for professional appearance and long-term durability in demanding IT environments.

How to Use

• Mount the panel into any standard 19-inch rack or cabinet.
• Route patch cords through the horizontal cable rings to organize cable runs between equipment.
• Use the vertical rings to transition cables upward or downward along the rack.
• Bundle cables using hook-and-loop ties to maintain clean and manageable cable paths.

When to Use

• Managing patch cables between network switches and patch panels.
• Routing cables between rack equipment while maintaining organized pathways.
• Improving cable structure in telecom closets, server rooms, and network racks.
• Installations where both horizontal and vertical cable routing are needed.

Use With

• Rack Mount Patch Panels
• Network Switches
• Horizontal & Vertical Cable Managers
• Hook-and-Loop Cable Ties
• Two-Post or Four-Post Network Racks

Shelves Network Racks

Technical Specifications

Included Hardware Kit (Part #94-040400)

• 4 × 12-24 Black Panhead Phillips Rack Screws
• 4 × 10-32 Black Panhead Phillips Rack Screws
