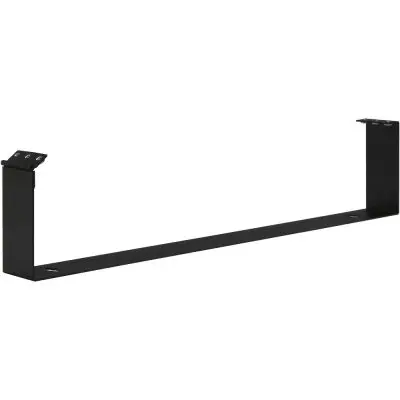

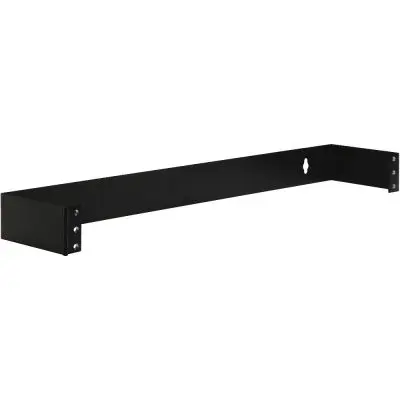

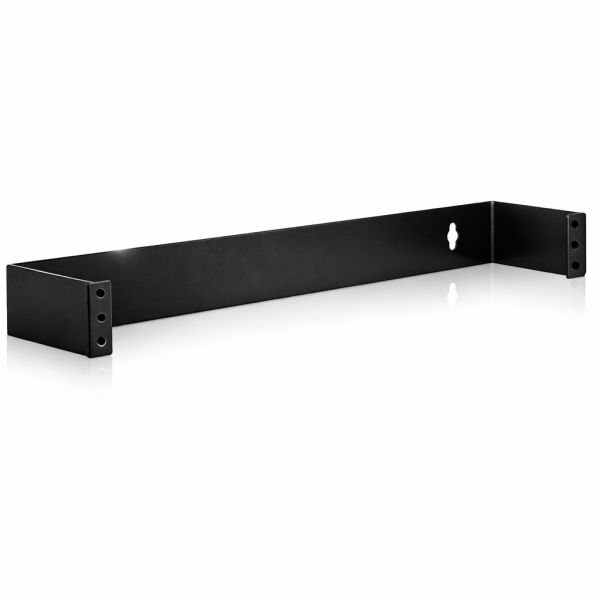

Hinged Wall Mount Bracket with Tinnerman Clips – 1U – 4″ Deep

A 1U Hinged Wall Bracket with Tinnerman Clips instead of fixed Pemnuts (19″) is a reduced-cost alternative since the Tinnerman Clips can be inserted as needed.

The bracket is a space-saving, steel mounting solution designed to securely hold standard 19-inch rackmount equipment, such as patch panels, network switches, and audio gear, on a wall rather than in a traditional floor rack. The “1U” designation means it occupies one rack unit (1.75 inches) of vertical space.

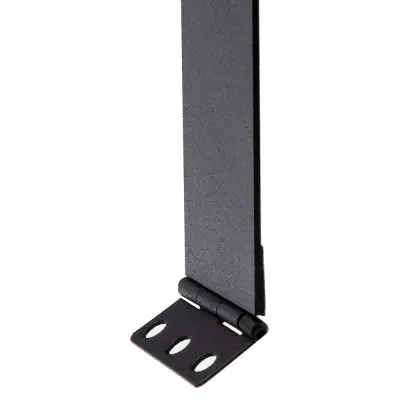

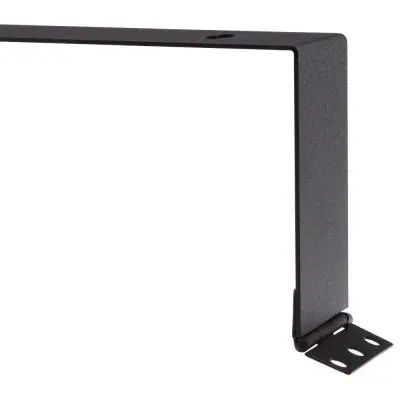

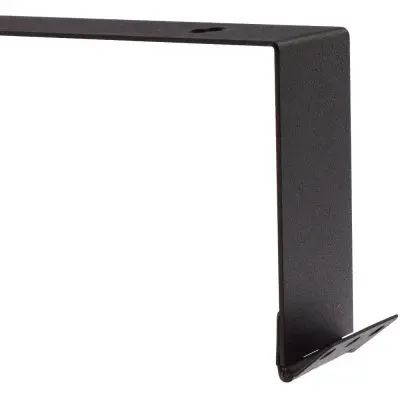

• Hinged Design: The bracket is equipped with a hinge, typically on one side, allowing the mounted equipment to swing away from the wall. This provides easy rear access for cable management, maintenance, and installation without removing the entire device. 10-32 thread Pemnuts are inserted on both sides of the bracket.
• Standard 19” Width: Compatible with all EIA-310-D standard 19-inch rackmount equipment.
• Durable Construction: Made from sturdy, powder-coated steel for long-lasting support and a professional appearance.
• Easy Wall Mounting: Features mounting holes for fast, secure attachment to almost any wall surface.
• Space Efficient: Ideal for environments with limited space, such as wiring closets, small offices, or home networks.
• Common Uses: Mounting patch panels, network switches, fiber enclosures, and other rackmount components.

Included Hardware Kit (Part #93-103500)
Each panel ships with a comprehensive hardware kit, including two popular screw types to fit any rack or cabinet:

• 4 × 12-24 Black Panhead Phillips screws
• 4 × 10-32 Black Panhead Phillips screws

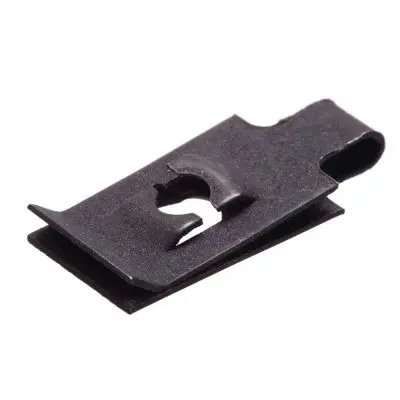

• 8 10-32 Tinnerman Clips

Specifications:
1U (2.81″ High) × 19.25″ Wide × 5.73″ Deep × 1.62 lb

Summary:
A 1U Hinged Wall Bracket (19″) is a compact, versatile solution for wall-mounting a single rack unit of IT or AV equipment, making it easy to access and service your hardware even in tight spaces.
