$35.84

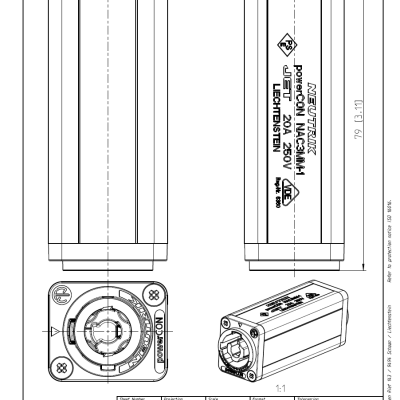

The Neutrik NAC3MM-1 powerCON® Cable Coupler provides a rugged, secure method for linking powerCON® power cables. Designed for professional audio, video, lighting, broadcast, and industrial power distribution applications, this inline adapter connects powerCON® power-in and power-out cable connectors for a dependable AC power connection.
The powerCON® system replaces standard appliance couplers wherever a more durable locking power connection is required. Its Quick Lock design helps prevent accidental disconnect in demanding environments.
| Model | NAC3MM-1 |
| Connection Type | Adapter |
| Gender | Male |
| Rated Current | 16 A RMS |
| Rated Voltage | 250 VAC |
| Contact Resistance | ≤ 3 mΩ |
| Dielectric Strength | 4 kVDC |
| Insulation Resistance | > 0.1 GΩ |
| Locking Device | Quick Lock |
| Shell Material | Polyamide PA 6.6, 30% glass reinforced |
| Contacts | Bronze, silver plated |
| Protection Class | IP20 when mated |
| Temperature Range | -30°C to +80°C |
| Flammability | UL 94 V-0 |
| Lifetime | > 1,000 mating cycles |
The Neutrik NAC3MM-1 is an ideal solution for applications requiring a rugged, locking AC power connection with the durability and reliability expected from professional powerCON® components.
