BNC – 12 Port – Feedthru Panel – 50 Ohm – 1U – Loaded

Unprecedented Lifetime Warranty on all the products we produce.

Description:

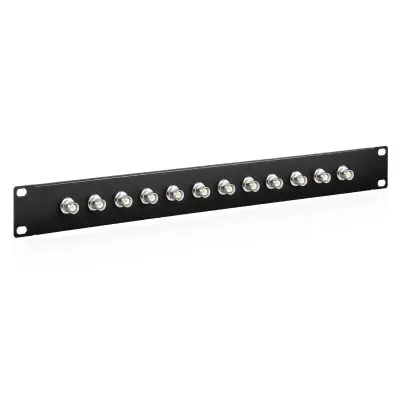

BNC – 12 Port – 50Ω Feed-Through Panel – 1U Loaded

Standard 19″ rack width • 1U height • 12 D-style ports • Loaded with 50Ω BNC feed-through connectors • Black powder-coated steel

This 1U 12-port 50Ω BNC feed-through patch panel is designed for clean, organized coaxial cable management in standard 19-inch equipment racks. The panel ships fully loaded with twelve precision 50Ω BNC feed-through connectors, making it ideal for RF communications, laboratory instrumentation, test equipment, wireless systems, broadcast facilities, and other applications requiring proper 50-ohm impedance matching. The feed-through design allows quick front-to-rear cable routing without soldering while maintaining a professional rack installation.

Connectors Cable Mgmt Coax Cables

Technical Specifications — 50Ω BNC Feed-Through Panel
Category Detail
Form Factor 1U rackmount
Width 19 inches (standard EIA rack width)
Connector Type 12 × 50Ω BNC female-to-female feed-through connectors (loaded)
Characteristic Impedance 50 Ohms
Material Steel with black powder-coated finish
Mounting Standard rackmount flanges with screw holes
Applications RF communications, wireless systems, test equipment, laboratory instrumentation, amateur radio, military, aerospace, and 50Ω broadcast systems
Included Hardware Kit (Part #93-040400)

Each panel ships with a comprehensive hardware kit including two popular screw types to fit virtually any equipment rack or cabinet:

  • 4 × 12-24 Black Panhead Phillips screws
  • 4 × 10-32 Black Panhead Phillips screws
Why Buy from Gruber Communications?
  • True 50Ω impedance — Factory loaded with precision 50-ohm BNC feed-through connectors.
  • Professional installation — Clean front-to-rear coax routing without soldering.
  • Heavy-duty construction — Powder-coated steel rack panel built for demanding environments.
  • Ideal applications — RF, wireless, laboratory, military, aerospace, broadcast, and communications infrastructure.
