$13.85
This 1U BNC feed-through panel is designed for standard 19-inch rackmount systems, offering a clean and configurable solution for organizing coaxial signal connections.
Shipped unloaded, it features 12 D-style cutouts ready for your choice of 50Ω or 75Ω BNC feed-through barrels.
Constructed from rigid steel with a black powder-coated finish, it is ideal for broadcast facilities, surveillance infrastructure, or RF test environments.

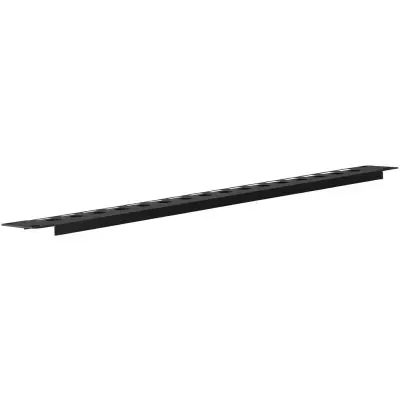

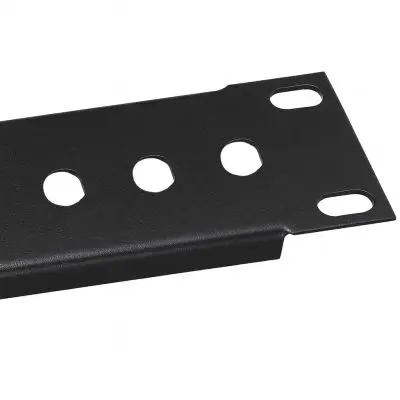

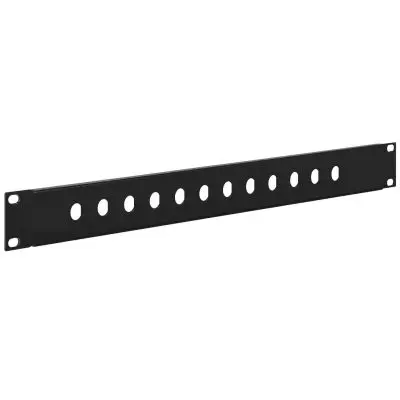

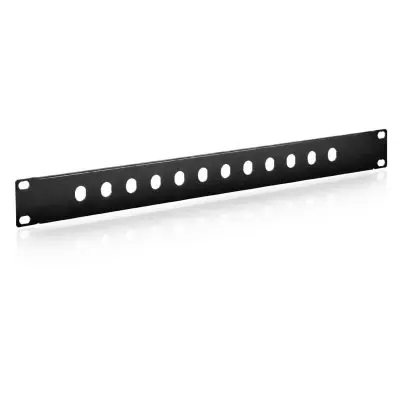

BNC – 12 Port Feedthru Panel – 1U
| Category | Detail |
|---|---|
| Form Factor | 1U rackmount |
| Width | 19 inches (standard EIA rack width) |
| Connector Type | 12-port D-style holes for BNC feed-through barrels (unloaded) |
| Material | Steel with black powder-coat finish |
| Mounting | Standard rackmount flanges with screw holes |
| Applications | Broadcast video, RF patching, coaxial signal routing, surveillance |
Included Hardware Kit (Part #93-040400)
Each panel ships with a comprehensive hardware kit including two popular screw types to fit any rack or cabinet:
| U Size | Rack Spaces | Height (inches) | Height (cm) |
|---|---|---|---|
| 1U | 1 | 1.75″ | 4.45 cm |
| 2U | 2 | 3.50″ | 8.89 cm |
| 3U | 3 | 5.25″ | 13.34 cm |
| 4U | 4 | 7.00″ | 17.78 cm |
| 5U | 5 | 8.75″ | 22.23 cm |
| 8U | 8 | 14.00″ | 35.56 cm |
Maintenance Tip: Multiply the U size by 1.75 to get height in inches (1 inch = 2.54 cm). Example: 5U × 1.75″ = 8.75″ ≈ 22.23 cm.
