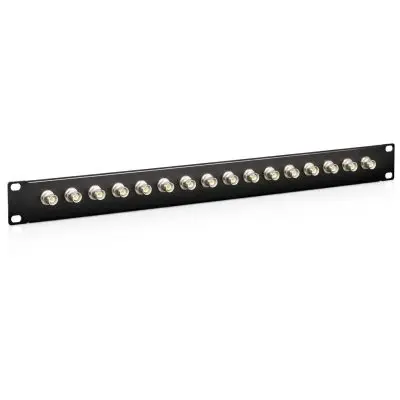

This 1U loaded BNC feed-through panel is designed for standard 19-inch rackmount systems, providing a professional, ready-to-install solution for organizing coaxial signal connections. The panel comes factory loaded with sixteen 50Ω BNC feed-through connectors, making it ideal for RF test equipment, communications systems, laboratory installations, wireless infrastructure, amateur radio, timing systems, and other 50-ohm coaxial applications. Constructed from heavy-duty steel with a durable black powder-coated finish, this panel delivers reliable performance while keeping rack wiring organized and easily serviceable.
Connectors Cable Mgmt Coax Cables
| Category | Detail |
|---|---|
| Form Factor | 1U rackmount |
| Width | 19 inches (standard EIA rack width) |
| Connector Type | 16 × 50Ω BNC feed-through connectors |
| Impedance | 50 Ohms |
| Connector Style | D-style BNC feed-through barrels |
| Material | Steel with black powder-coat finish |
| Mounting | Standard rackmount flanges with screw holes |
| Applications | RF communications, wireless systems, laboratory test equipment, amateur radio, timing systems, instrumentation, and other 50Ω coaxial applications |
Each panel ships with a comprehensive hardware kit including two popular screw types to fit virtually any rack or cabinet:
| U Size | Rack Spaces | Height (inches) | Height (cm) |
|---|---|---|---|
| 1U | 1 | 1.75″ | 4.45 cm |
| 2U | 2 | 3.50″ | 8.89 cm |
| 4U | 4 | 7.00″ | 17.78 cm |
| 5U | 5 | 8.75″ | 22.23 cm |
| 8U | 8 | 14.00″ | 35.56 cm |
Maintenance Tip: Multiply the U size by 1.75 to determine rack height in inches (1 inch = 2.54 cm). Example: 5U × 1.75″ = 8.75″ ≈ 22.23 cm.
