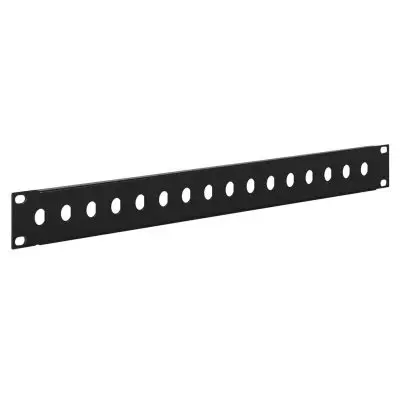

BNC – 16 Port – Feedthru Panel – 1U – Unloaded

Price:

$19.85

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

BNC – 16 Port Feedthru Panel – 1U Unloaded
    • • Standard 19″ rack width
    • • 1U height
    • • 16 pre-punched D-style ports
    • • Unloaded for coaxial BNC connectors

This 1U BNC feed-through panel is designed for standard 19-inch rackmount systems, offering a clean and configurable solution for organizing coaxial signal connections. Shipped unloaded, it features 16 D-style cutouts ready for your choice of 50Ω or 75Ω BNC feed-through barrels. Constructed from rigid steel with a black powder-coated finish, it is ideal for broadcast facilities, surveillance infrastructure, or RF test environments.

Connectors Cable Management

Technical Specifications—BNC Feed-Through Panel
Category Detail
Form Factor 1U rackmount
Width 19 inches (standard EIA rack width)
Connector Type 16-port D-style holes for BNC feed-through barrels (unloaded)
Material Steel with black powder-coat finish
Mounting Standard rackmount flanges with screw holes
Applications Broadcast video, RF patching, coaxial signal routing, surveillance
Included Hardware Kit (Part #93-040400)

Each panel ships with a comprehensive hardware kit including two popular screw types to fit any rack or cabinet:

  • 4 × 12-24 Black Panhead Phillips screws
  • 4 × 10-32 Black Panhead Phillips screws
Dimensions — Standard Rack Unit Sizes
U Size Rack Spaces Height (inches) Height (cm)
1U 1 1.75″ 4.45 cm
2U 2 3.50″ 8.89 cm
4U 4 7.00″ 17.78 cm
5U 5 8.75″ 22.23 cm
8U 8 14.00″ 35.56 cm

Maintenance Tip: Multiply the U size by 1.75 to get height in inches (1 inch = 2.54 cm).
Example: 5U × 1.75″ = 8.75″ ≈ 22.23 cm.

Why buy from Gruber
  • Broadcast ready — Perfect for CCTV, RF, and A/V infrastructure.
  • Durable build — Industrial-grade 1U steel panel with long-lasting finish.
  • Connectors — Your choice of 50Ω or 75Ω BNC feed-through barrels.
