BNC – 32 Port Patch Panel – 2U Loaded – 50ΩÂ

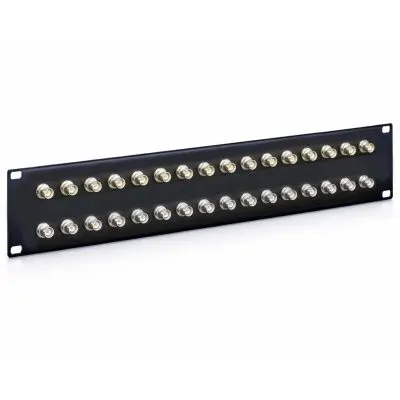

This 2U, 32-port BNC feed-through patch panel provides a clean, organized solution for routing 50-ohm coaxial signal connections in standard 19-inch rack systems. The panel is factory loaded with 32 isolated 50Ω BNC female-to-female feed-through connectors, allowing cables to connect directly to the front and rear of the rack without soldering or permanent termination. Its durable black powder-coated steel construction makes it ideal for RF communications, laboratory test equipment, wireless systems, instrumentation, amateur radio, timing systems, military, aerospace, and other 50-ohm coaxial applications. The high-density 32-port layout maximizes rack space while maintaining easy access for installation, maintenance, and future expansion.
Connectors Cable Mgmt Coax Cables
| Category | Detail |
|---|---|
| Form Factor | 2U rackmount |
| Width | 19 inches (standard EIA rack width) |
| Port Count | 32 loaded BNC ports |
| Connector Type | 32 isolated BNC female-to-female feed-through connectors |
| Impedance | 50 Ohms |
| Connector Mounting | D-style panel-mounted feed-through barrels |
| Material | Steel with black powder-coat finish |
| Rack Mounting | Standard rackmount flanges with screw holes |
| Applications | RF communications, laboratory test equipment, wireless systems, instrumentation, amateur radio, timing systems, military, aerospace, and 50Ω coaxial signal routing |
Each panel ships with a comprehensive hardware kit including two popular screw types to fit virtually any rack or cabinet:
| U Size | Rack Spaces | Height (inches) | Height (cm) |
|---|---|---|---|
| 1U | 1 | 1.75″ | 4.45 cm |
| 2U | 2 | 3.50″ | 8.89 cm |
| 4U | 4 | 7.00″ | 17.78 cm |
| 5U | 5 | 8.75″ | 22.23 cm |
| 8U | 8 | 14.00″ | 35.56 cm |
