BNC Coupler – Female/Female – Chassis Mount – 75 Ohm Insulated

75 Ohm Insulated
ad8522b2-ba61-4cb7-b6b3-cffc467f8c82 copy
Male Connector copy
Medallion
Made In USA
Lifetime Warrranty
75 Ohm Insulated
ad8522b2-ba61-4cb7-b6b3-cffc467f8c82 copy
Male Connector copy
Medallion
Made In USA
Lifetime Warrranty
PN: 18<103006 SKU 18<103006 Categories , , , Tags , , ,

Unprecedented Lifetime Warranty on all the products we produce.

Description:

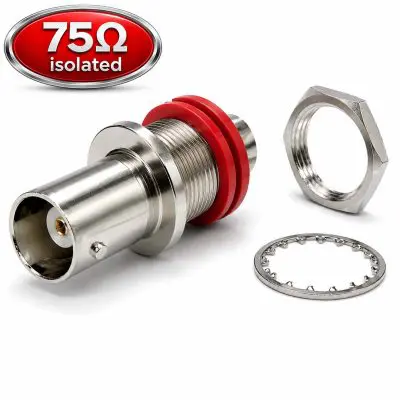

75-Ohm Isolated BNC Feedthrough Connector — Female/Female, Chassis Mount

Professional-grade 75-ohm BNC female-to-female isolated feedthrough connector designed for routing broadcast video, CCTV, SDI, and other 75-ohm coaxial signals through rack panels, bulkheads, and custom enclosures. The isolated mounting design electrically separates the connector body from the chassis or panel, helping prevent unwanted grounding paths and ground-loop interference in sensitive video and signal-distribution systems.

Coax Cables BNC Panels Crimp Tools

  • 75-ohm BNC female-to-female feedthrough — Provides a matched pass-through connection for broadcast video, CCTV, SDI, and other 75-ohm coaxial systems.
  • Electrically isolated mounting — Dual insulating washers separate the connector body from the panel to help reduce chassis grounding and ground-loop problems.
  • Chassis / bulkhead mount body — Threaded barrel with mounting flange, insulating washers, lock washer, and nut for secure panel installation.
  • Nickel-plated metal construction — Durable, corrosion-resistant body suitable for broadcast, commercial AV, laboratory, and field-service environments.
  • Gold-plated center contacts — Helps provide low contact resistance and dependable long-term video and RF signal performance.
  • Broadcast and video ready — Ideal for analog video, CCTV, HD-SDI, SD-SDI, patch panels, test fixtures, and equipment enclosures.
Specification Detail
Connector Interface 75-ohm BNC female-to-female isolated feedthrough connector
Gender Female jack on both ends (BNC F/F)
Characteristic Impedance 75 ohms
Isolation Type Connector body electrically isolated from panel by dual plastic insulating washers
Mounting Style Chassis / bulkhead mount with metal flange, insulating washers, lock washer, and hex nut
Body / Hardware Plating Nickel-plated brass body with plated mounting hardware
Center Contact Plating Gold-plated center contacts
Panel Cutout Standard bulkhead cutout sized for the threaded mounting body and insulating washers
Typical Signal Types Composite video, CCTV, SD-SDI, HD-SDI, broadcast video, and other 75-ohm coaxial signals
Typical Applications Broadcast patch panels, CCTV installations, video distribution systems, rack panels, test fixtures, custom enclosures, and bench instruments

Why buy from Gruber Communications

  • Designed for 75-ohm video systems — A proper impedance-matched feedthrough for CCTV, broadcast, SDI, and professional video applications.
  • Isolated panel mounting — Insulating washers help prevent the connector shell from contacting the chassis and creating unwanted grounding paths.
  • Built for real-world panels — Ideal for outfitting rack panels, shelves, project boxes, and equipment enclosures with reliable BNC pass-through points.
  • One source for video hardware — Combine BNC feedthroughs, coaxial cable, patch panels, adapters, and installation accessories from a single stocking distributor.
  • Installer-ready inventory — Practical quantities for low-voltage contractors, broadcast technicians, bench technicians, and in-house maintenance teams.
