BNC Terminator – Male – 50Ω – 1% – Coax Connector

Price:

$2.59

PN: 18-102200 SKU 18-102200 Categories , , , Tags , , ,

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

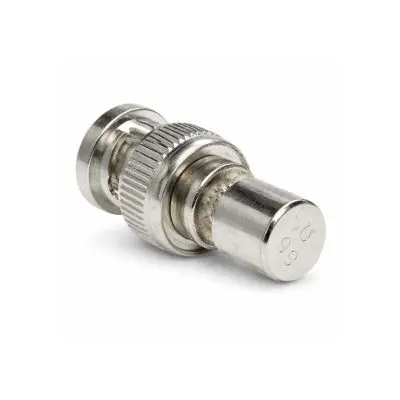

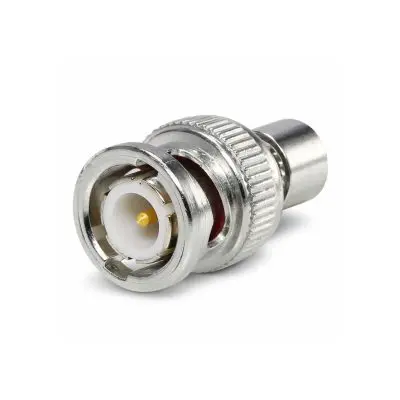

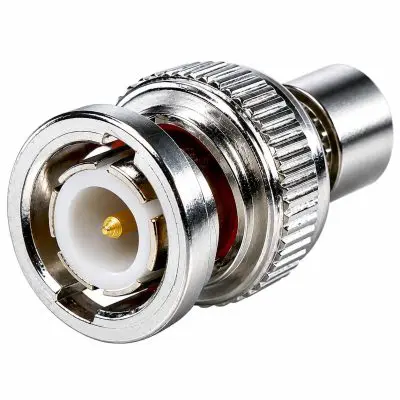

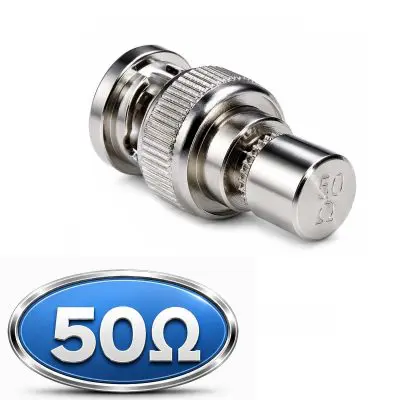

BNC Terminator — Male, 50Ω, 1% Coax Connector

Precision BNC male 50Ω terminator for properly loading unused BNC ports on RF gear, test instruments, and 50Ω video or data lines. This compact coaxial male plug-style terminator presents a 50Ω resistive load with 1% tolerance to help maintain correct line impedance, minimize reflections, and protect signal integrity at the end of a run or unused input.

BNC Cables & Accessories
BNC Patch Panels

  • Male BNC 50Ω terminator — Plugs directly into BNC jacks on instruments, patch panels, and RF equipment.
  • Tight 1% resistance tolerance — Provides a precise 50Ω load for more accurate test, measurement, and system performance.
  • Prevents reflections & ghosting — Helps reduce signal reflections on unterminated lines that can cause ringing, ghost images, or data errors.
  • Compact, inline form factor — Small enough to leave installed on unused ports without interfering with adjacent connectors.
  • Nickel-plated metal body — Durable, corrosion-resistant shell for bench, rack, and field service environments.
  • Gold-plated center contact — Maintains low contact resistance and stable RF performance over time.
Specification Detail
Connector Type BNC male (plugs into female BNC jack)
Function Coaxial line terminator for unused 50Ω BNC ports
Nominal Impedance 50Ω nominal
Tolerance ±1% resistive element
Body / Shell Plating Nickel-plated brass body
Center Contact Plating Gold-plated center contact
Typical Use Case Terminating unused 50Ω inputs/outputs on scopes, analyzers, RF gear, patch panels, and distribution amps
Signal Types RF, 50Ω baseband video, clock/data, and other 50Ω coax lines

Why buy from Gruber Communications

  • Protects your measurements — Proper terminations help ensure that scopes, analyzers, and signal sources see the correct load.
  • One-stop BNC shop — Match terminators with our BNC patch cords, couplers, keystones, and bulkheads for complete RF/video solutions.
  • Installer & lab ready — Stocked in practical quantities for low-voltage contractors, RF labs, and in-house maintenance teams.
