Cantilever Shelf – Deep Version Vented – 2U

Price:

$49.49

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

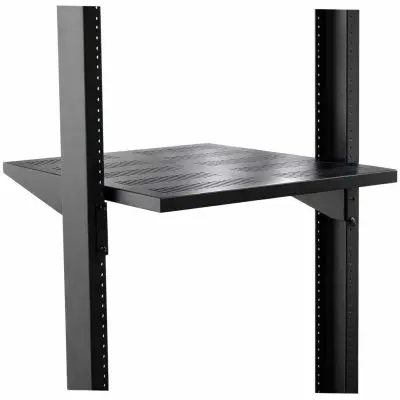

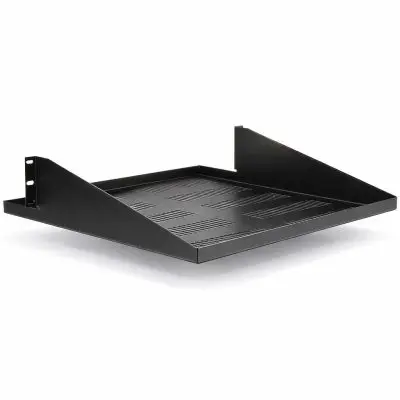

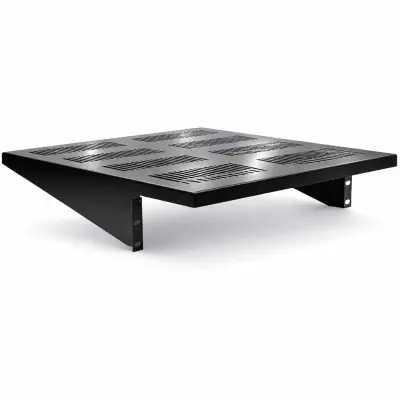

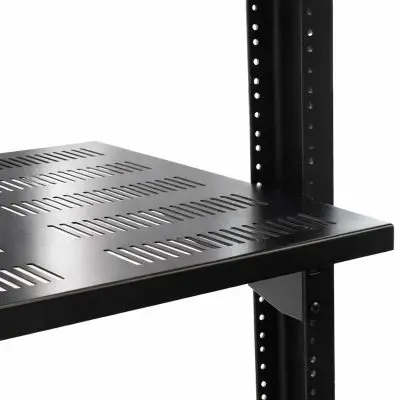

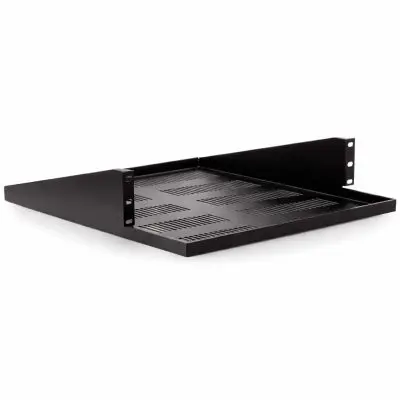

2U Deep Cantilever Shelf — 18″ Deep, Black Satin Steel, 19″ Rack Shelf

This 2U deep cantilever shelf provides an extended support surface for larger or deeper equipment in standard 19″ racks and cabinets. Measuring 19″ W x 18″ D x 3.5″ H (2U), it delivers 14″ of protruding surface in front of the rails while utilizing an additional 4″ of surface behind the mounting rails, making it a great choice for devices that need extra depth or support.

Network Racks
Cable Management

  • Deep 18″ design — Provides 14″ of usable shelf extending from the rack plus 4″ behind the mounting rails (18″ Total).
  • 2U, 19″ rack compatible — Fits all standard 19″ EIA upright relay racks or cabinets.
  • Dual-orientation mounting — Mount upright for a smooth surface or inverted to create a 3/4 border across the shelf.
  • 16-gauge steel construction — Cold-rolled steel for strength, rigidity, and long service life.
  • Black satin industrial finish — Satin black powder-style coating matches modern rack hardware.
  • Includes hardware kit — Comes with both 10-32 and 12-24 black panhead screws for most racks and cabinets.
Specification Detail
Rack Size 2U, 19″ EIA rack width
Shelf Dimensions 19″ W x 18″ D x 3.5″ H (2U high)
Usable Surface 14″ protruding surface + 4″ behind the rack rails (18″ Total)
Material 16-gauge cold-rolled steel
Finish Satin black industrial coating
Mounting Options Upright (flat surface) or inverted (lip edge); front rack mounting
Included Hardware Kit (4) 12-24 black panhead Phillips screws
(4) 10-32 black panhead Phillips screws
Typical Uses Deeper network devices, power supplies, AV gear, test equipment, and non-rackmount hardware

Why choose deep cantilever shelves from Gruber

  • Extra depth where you need it — 18″ overall depth with 14″ protruding surface supports larger equipment comfortably.
  • Flexible mounting options — Upright or inverted mounting lets you choose between a flat surface or a retaining lip.
  • Rugged construction — 16-gauge steel and industrial coating stand up to real-world rack environments.
  • Hardware included — Ships ready to install with common 10-32 and 12-24 rack screws in the box.
