DB15 – 12 Port – Feedthru Panel – 1U – Unloaded

Bundle

Price:

$22.85

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

DB15 – 12 Port – Feedthru Panel – 1U – Unloadedย

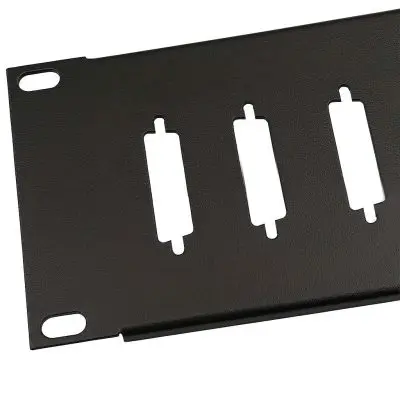

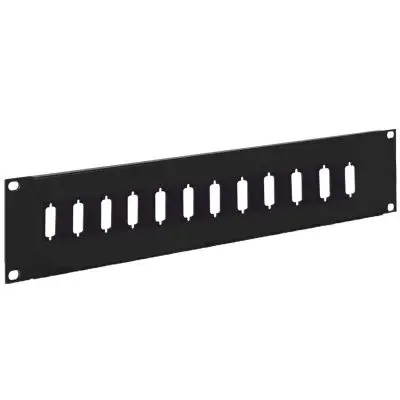

Standard 19″ rack width โ€ข 1U height โ€ข 12 DB15 panel cutouts โ€ข Black powder-coated steel โ€ข Unloaded

This 1U DB15 12-port feed-through panel is designed for clean, organized signal routing in standard 19-inch rack environments. Delivered unloaded, it allows installers to populate the panel with the DB15 feed-through couplers or panel-mount connectors that best suit their application. Ideal for industrial control, KVM, instrumentation, legacy device interconnects, and custom low-voltage I/O installations requiring flexible connector selection.

Connectors Cable Management

Technical Specificationsโ€”DB15 Feed-Through Panel
Category Detail
Form Factor 1U rackmount
Width 19 inches (standard EIA rack width)
Connector Capacity 12 DB15 feed-through connector openings (connectors sold separately)
Material Steel with black powder-coat finish
Mounting Standard rackmount flanges with screw holes
Applications Industrial control, KVM switching, instrumentation, legacy device interconnects, custom low-voltage I/O
Included Hardware Kit (Part #93-040400)

Each panel ships with a comprehensive hardware kit including two popular screw types to fit any rack or cabinet:

  • 4 ร— 12-24 Black Panhead Phillips screws
  • 4 ร— 10-32 Black Panhead Phillips screws
Dimensions โ€” Standard Rack Unit Sizes
U Size Rack Spaces Height (inches) Height (cm)
1U 1 1.75โ€ณ 4.45 cm
2U 2 3.50โ€ณ 8.89 cm
4U 4 7.00โ€ณ 17.78 cm
5U 5 8.75โ€ณ 22.23 cm
8U 8 14.00โ€ณ 35.56 cm

Maintenance Tip: Multiply the U size by 1.75 to get height in inches (1 inch = 2.54 cm). Example: 1U ร— 1.75โ€ณ = 1.75โ€ณ โ‰ˆ 4.45 cm.

Why buy from Gruber
  • Flexible configuration โ€” Populate the panel with the exact DB15 feed-through connectors required for your application.
  • Durable build โ€” Industrial-grade 1U steel panel with long-lasting black powder-coat finish.
  • Installation ready โ€” Standard 19-inch rackmount panel with precision-cut openings for 12 DB15 feed-through connectors.
