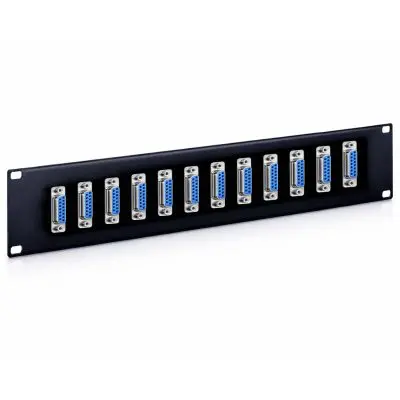

DB15 – 12 Port – Feedthru Panel – Female to Female – 1U – Loaded

Bundle

Price:

$70.85

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

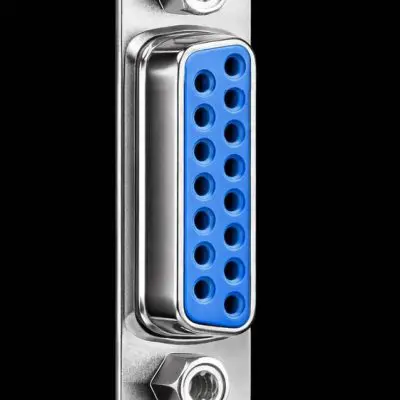

D-Subminiature 15-Pin โ€“ Female to Female – 12 Port Patch Panel โ€“ 1U Loadedย

Standard 19″ rack width โ€ข 1U height โ€ข 12 D-subminiature 15-pin Female to Female ports โ€ข Black powder-coated steel

This 1U D-subminiature 15-pin 12-port patch panel is built for clean, organized serial and low-voltage signal management in standard 19-inch rack environments. Featuring 12 DB15 Female-to-Female feed-through connectors, this fully loaded panel provides a professional solution for RS-232, industrial control, instrumentation, data acquisition, KVM, and legacy communications applications without requiring additional connector installation.

Connectors Cable Management

Technical Specifications โ€” D-Subminiature 15-Pin Female to Female Panel
Category Detail
Form Factor 1U rackmount
Width 19 inches (standard EIA rack width)
Connector Type 12 DB15 Female-to-Female feed-through connectors
Material Steel with black powder-coat finish
Mounting Standard rackmount flanges with screw holes
Applications RS-232 serial patching, industrial control, instrumentation, KVM switching, data acquisition, and legacy device interconnects
Included Hardware Kit (Part #93-040400)

Each panel ships with a comprehensive hardware kit including two popular screw types to fit virtually any rack or cabinet:

  • 4 ร— 12-24 Black Panhead Phillips screws
  • 4 ร— 10-32 Black Panhead Phillips screws
Dimensions โ€” Standard Rack Unit Sizes
U Size Rack Spaces Height (inches) Height (cm)
1U 1 1.75โ€ณ 4.45 cm
2U 2 3.50โ€ณ 8.89 cm
4U 4 7.00โ€ณ 17.78 cm
5U 5 8.75โ€ณ 22.23 cm
8U 8 14.00โ€ณ 35.56 cm

Maintenance Tip: Multiply the U size by 1.75 to determine rack height in inches (1 inch = 2.54 cm). Example: 5U ร— 1.75โ€ณ = 8.75โ€ณ โ‰ˆ 22.23 cm.

Why Buy from Gruber Communications
  • Serial infrastructure ready โ€” Perfect for RS-232, console, instrumentation, industrial control, and legacy communications systems.
  • Industrial-grade construction โ€” Durable 1U steel rack panel with a long-lasting black powder-coated finish.
  • Fully loaded โ€” Includes twelve factory-installed DB15 Female-to-Female feed-through connectors for fast, professional installation.
