DB25 – 12 Port – Feedthru Panel – Female to Female – 2U – Loaded

Price:

$165.46

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

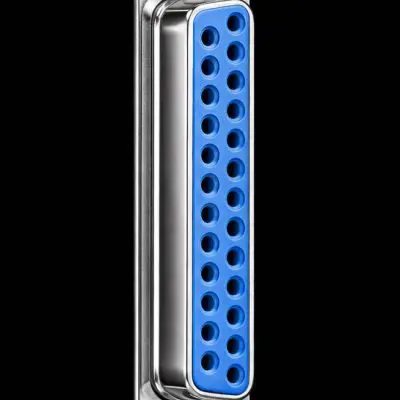

D-Subminiature 25-Pin โ€“ Female to Female – 12 Port Patch Panel โ€“ 2U Loadedย

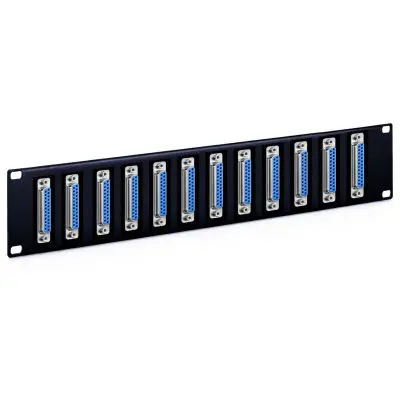

Standard 19″ rack width โ€ข 2U height โ€ข 12 D-subminiature 25-pin Female to Female ports โ€ข Black powder-coated steel

This 2U D-subminiature 15-pin 24-port patch panel is built for clean, organized serial and low-voltage signal management in standard 19-inch rack environments. With 12 DB15 Female – Female Feedthru Connectors, it ships unloaded so installers can populate the panel with their preferred 9-pin feed-throughs, gender changers, or panel-mount serial interfaces for RS-232, control, instrumentation, and legacy communications applications.

Connectors Cable Management

Technical Specificationsโ€”D-Subminiature โ€“ Female to Female – 25-Pin Panel
Category Detail
Form Factor 2U rackmount
Width 19 inches (standard EIA rack width)

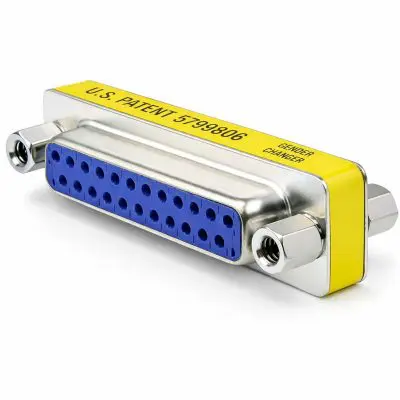

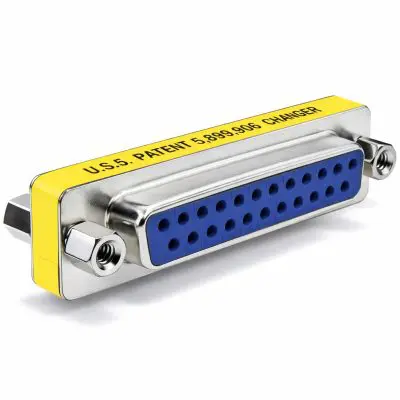

Connector Type 12-port D-subminiature 25-pin Female to Female connectors
Material Steel with black powder-coat finish
Mounting Standard rackmount flanges with screw holes
Applications RS-232 serial patching, industrial control, instrumentation, data acquisition, legacy device interconnects
Included Hardware Kit (Part #93-040400)

Each panel ships with a comprehensive hardware kit including two popular screw types to fit any rack or cabinet:

  • 4 ร— 12-24 Black Panhead Phillips screws
  • 4 ร— 10-32 Black Panhead Phillips screws
Dimensions โ€” Standard Rack Unit Sizes
U Size Rack Spaces Height (inches) Height (cm)
1U 1 1.75โ€ณ 4.45 cm
2U 2 3.50โ€ณ 8.89 cm
4U 4 7.00โ€ณ 17.78 cm
5U 5 8.75โ€ณ 22.23 cm
8U 8 14.00โ€ณ 35.56 cm

Maintenance Tip: Multiply the U size by 1.75 to get height in inches (1 inch = 2.54 cm).
Example: 5U ร— 1.75โ€ณ = 8.75โ€ณ โ‰ˆ 22.23 cm.

Why buy from Gruber
  • Serial infrastructure ready โ€” Ideal for RS-232, console, control, and legacy communications environments.
  • Durable build โ€” Industrial-grade 1U steel panel with long-lasting black powder-coat finish.
  • Flexible loading โ€” Populate with the exact DB9 feed-through or panel-mount interfaces your installation requires.
