DB Pin Insertion/Extraction Tool – Hi Density

Price:

$8.25

PN: 32-603240 SKU 32-603240 Categories , , Tags , , , , ,

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

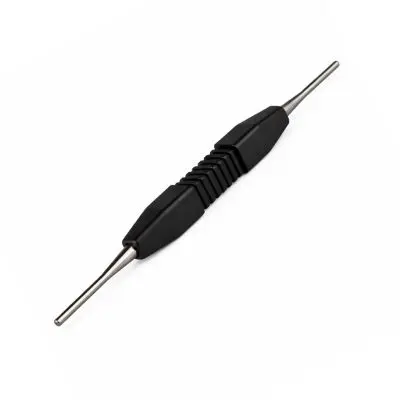

High-Density Tool — DB Pin Insertion / Extraction Tool, Hi-Density

Precision high-density DB pin insert/extract tool engineered for HD D-sub connectors (such as HD15/VGA and other hi-density DB shells). Slim, tubular spring-steel shafts and a comfortable grip handle make it ideal for insertion and removal of hi-density D-sub crimp pins in tight connector cavities without damaging contacts or insulators.

Crimp & Pin Tools
D-Sub Pins & Housings

  • Hi-density DB pin tool — Sized specifically for high-density D-sub / HD15 style crimp contacts.
  • Insert & extract in one — Designed for both insertion and removal of hi-density crimp pins from connector inserts.
  • Slim tubular shafts — Fine, tapered spring-steel tubes reach into crowded high-density cavities without spreading contacts.
  • Comfortable grip — Molded handle provides control for delicate pin work during harness builds and rework.
  • Protects connectors — Purpose-built geometry helps prevent broken latches and cracked insulators that come from improvised tools.
Specification Detail
Tool Type High-density DB pin insertion / extraction tool
Compatible Pins Hi-density D-sub crimp pins (e.g., HD15/VGA and similar HD D-sub contacts)
Shaft Construction Slim tapered tubular spring-steel shafts for high-density cavities
Handle Style Ergonomic plastic grip for fine control and reduced fatigue
Primary Functions Insertion and removal of hi-density D-sub crimp pins from connector inserts
Typical Connectors HD15 (VGA), other hi-density DB shells and matching pin blocks (model dependent)
Typical Applications VGA/HD15 cable assembly, re-pin work, repair benches, custom HD D-sub harnesses
