Modular Plug – RJ45 – 8P/8C – Flat Wire – Stranded – UL – 50µ – Gold

Price:

$1.10

PN: 18-400705 SKU 18-400705 Categories , , Tags , , , , , , ,

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

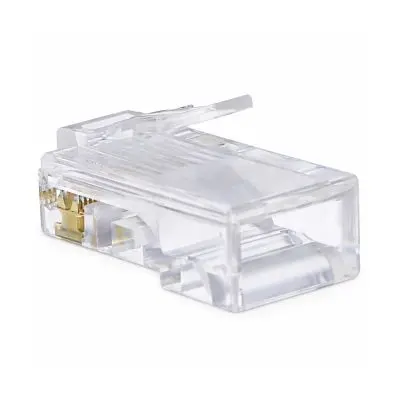

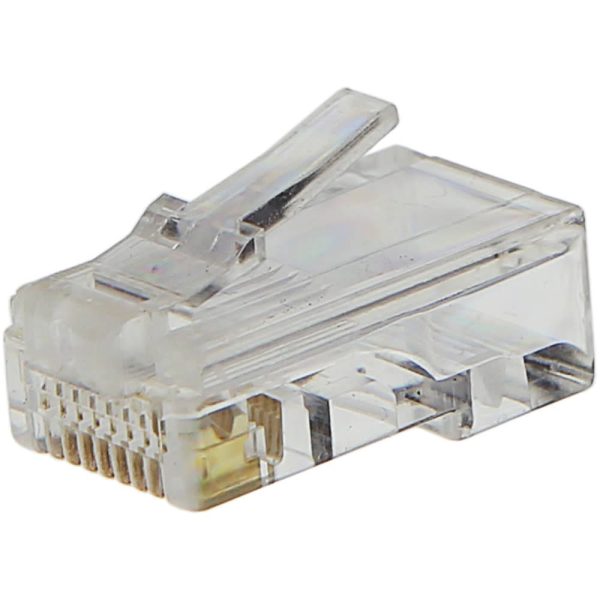

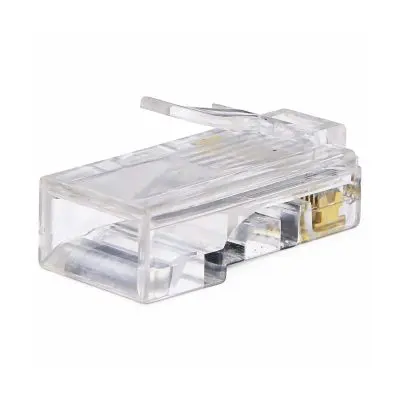

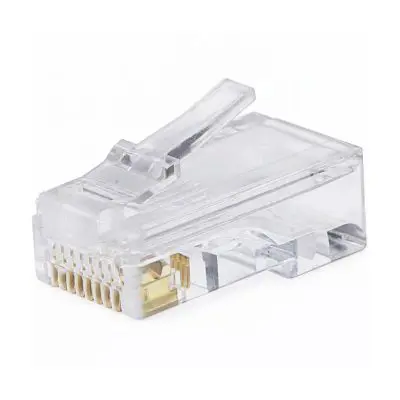

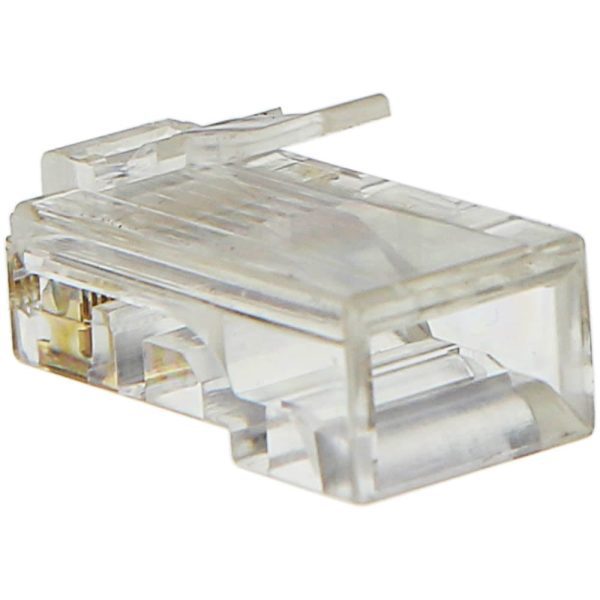

Modular Plug — RJ45 8P/8C, Cat5e, Flat Wire/Silver Satin, Stranded, UL, 50µ Gold

Compact RJ45 (8P/8C) Cat5e modular plug designed specifically to terminate flat network cable and silver satin. Supports
stranded conductors only and features a UL-rated, 50µ gold-plated contact set for reliable terminations in low-profile Ethernet
and data applications.

Crimp Tools

Flat / Silver Satin Cable

  • RJ45 8P/8C — Standard 8-conductor voice termination.
  • Flat/silver satin design — Tail geometry optimized for flat network cable and silver satin taper.
  • Stranded-only support — Contact blades tuned specifically for stranded copper conductors.
  • UL-rated body — UL-compliant housing for safety and code-friendly installations.
  • 50µ gold contacts — Thick gold plating for improved corrosion resistance and signal integrity.
  • Ideal for custom cords — Perfect for flat patch leads, jumpers, and low-profile equipment connections.
Specification Detail
Connector Type RJ45 modular plug, 8P/8C
Category Rating Voice
Positions / Contacts 8 positions, 8 contacts (8P/8C)
Cable Type Flat network cable / silver satin
Conductor Support Stranded copper conductors only
Housing / Rating UL-rated modular plug body
Contact Plating 50µ gold-plated contacts
Typical Applications Flat patch cords, jumpers, and short voice or data runs to equipment

Why buy from Gruber Communications

  • Legacy cabling support — Ideal for maintaining and extending flat/silver satin infrastructure.
  • Matched ecosystem — Pair with our Cat5e flat cable, panels, and tools for end-to-end solutions.
  • Installer-friendly quantities — Perfect for bench stock, service kits, and production cord builds.
