N Connector – LMR400/B9913/B7810A/B8214 – Male Crimp Straight

Price:

$16.32

PN: 18-104004 SKU 18-104004 Categories , , , Tags , , , , , , ,

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

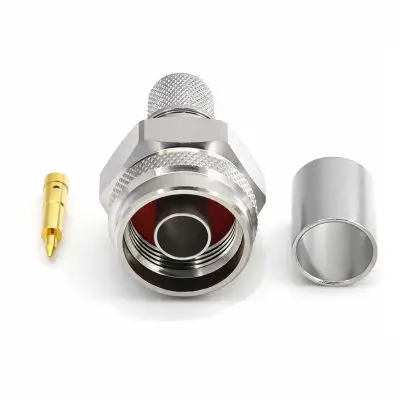

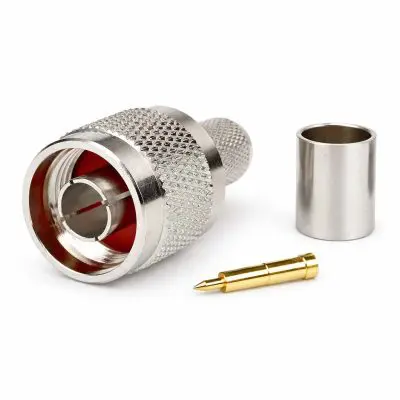

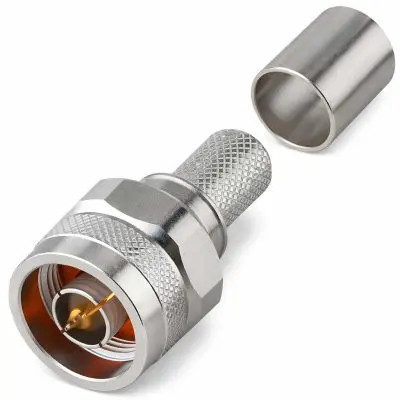

N Connector — Male Crimp, Straight, for LMR400 / B9913 / B7810A / B8214

High-performance N-type male RF connector in a straight crimp style, sized for LMR400, Belden 9913, 7810A, and 8214 coaxial cables. Designed for 50 Ω RF systems, this connector provides a robust, low-loss interface for antennas, jumpers, and equipment terminations in wireless, two-way radio, and broadband RF applications.

Crimp Tools RF Coax Cable

  • N-type male (straight) — Standard N male interface for RF equipment, antennas, and jumpers.
  • Crimp attachment — Straight crimp body for reliable, repeatable terminations with the correct die set.
  • LMR400 / 0.405″ OD coax — Sized for LMR400, Belden 9913, 7810A, 8214, and similar 0.405″ cables.
  • 50 Ω impedance — Optimized for RF systems, repeaters, base stations, and test setups.
  • Nickel-plated brass body — Rugged RF connector body for mechanical strength and consistent performance.
  • Gold-plated center contact — Provides low contact resistance and stable RF characteristics.
  • Broad RF use — Ideal for Wi-Fi, ISM band, VHF/UHF radios, and general RF interconnects.
Specification Detail
Connector Type N-type male, straight, crimp
Impedance 50 Ω nominal
Cable Compatibility LMR400, Belden 9913, 7810A, 8214 (approx. 0.405″ OD)
Body Material Nickel-plated brass
Center Contact Gold-plated pin
Attachment Method Crimp body and ferrule (requires matching crimp tool/dies)
Orientation Straight inline connector
Typical Applications RF jumpers, antenna leads, base stations, repeaters, test bench cables

Why buy from Gruber Communications

  • RF & wireless focus — Stocked specifically for LMR400-class RF jumpers and antenna feeds.
  • Installer-ready parts — Crimp-style N connectors chosen for repeatable, field-friendly terminations.
  • End-to-end solutions — Pair with our RF coax, adapters, and hardware for complete feedline assemblies.
