M66 Punch Down — 89D Block Mounting Bracket – Vertical
Telecom Mounting Hardware

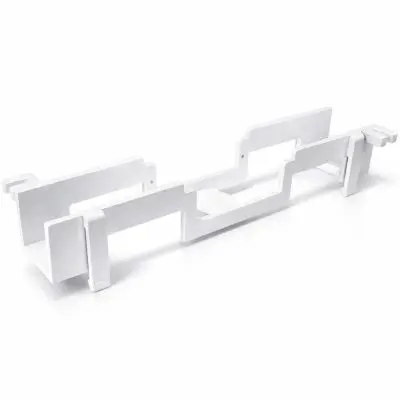

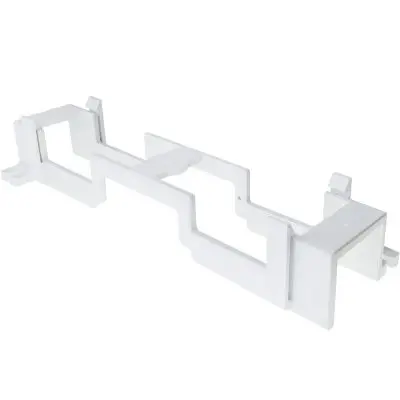

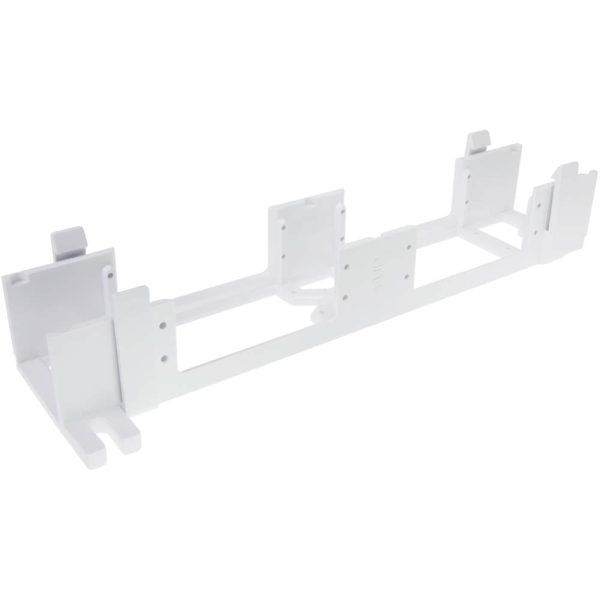

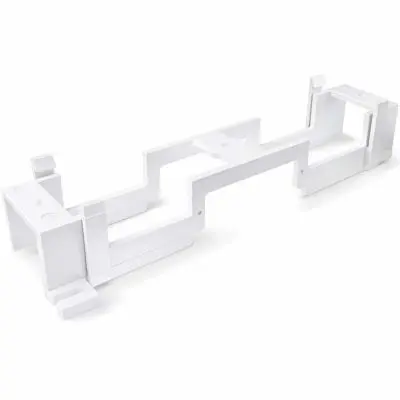

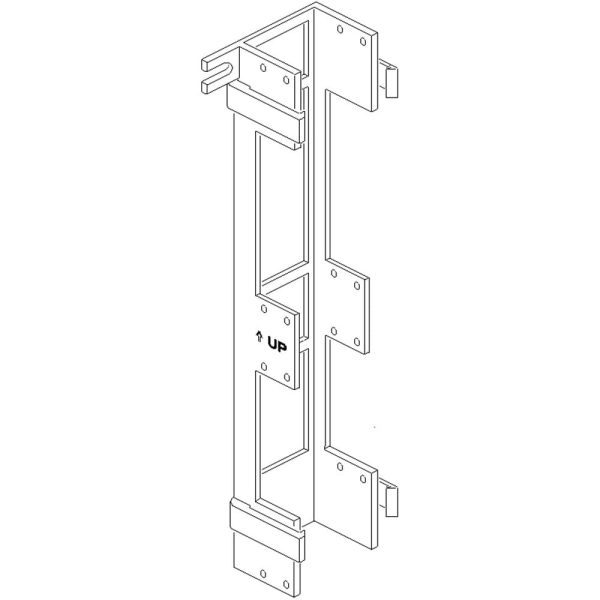

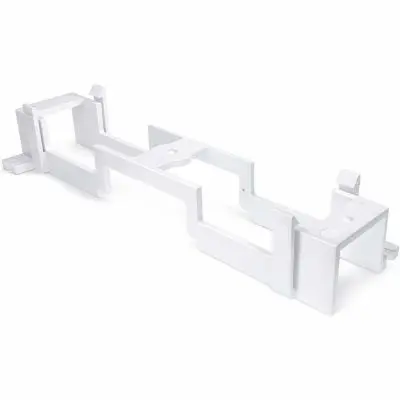

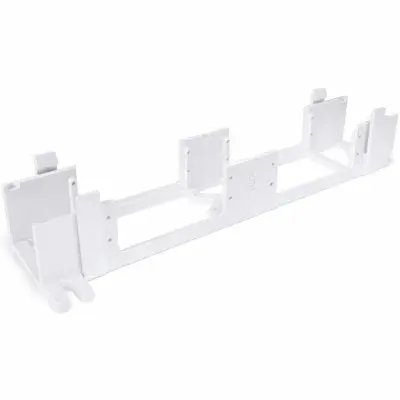

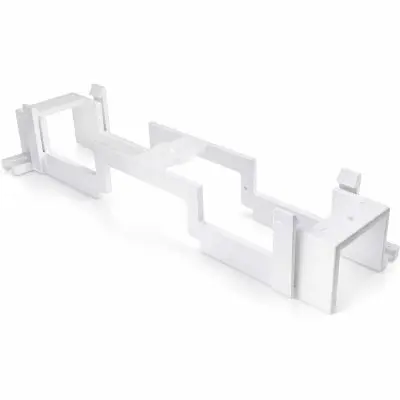

The 89D Vertical Mounting Bracket is designed to securely support M66 punch down blocks in structured telecom environments. This bracket allows technicians to mount blocks in a vertical orientation, making it ideal for backboards and distribution frames where vertical cable routing improves organization and service accessibility.
Why these fail
- Improper mounting hardware can lead to loose or unstable punch block installations.
- Poor mounting alignment creates difficult cross-connect management.
- Weak brackets may bend or deform under dense cable loads.
- Improvised installations often cause strain on terminated cable pairs.
Our solution
- Industry-standard 89D bracket designed for M66 punch block mounting.
- Vertical installation format supports clean cable routing from top to bottom.
- Rigid steel construction ensures stable support for dense telecom wiring.
- Optimized spacing allows easy access for cross-connect wiring and labeling.
- Ideal for MDF, IDF, and telecom backboard installations.
| Product Type |
M66 Punch Down Mounting Bracket |
| Bracket Style |
89D |
| Orientation |
Vertical |
| Compatibility |
M66 Punch Down Blocks |
| Material |
Heavy-Duty Steel |
| Application |
Telecom Backboards, MDF/IDF Cross-Connect Fields |
Service & Coverage
89D vertical brackets are widely used in enterprise telecom rooms, PBX installations, and campus distribution frames where vertical cable routing simplifies cross-connect management and keeps wiring organized across large telecom infrastructures.
Maintenance Tip
When installing vertical punch blocks, route incoming cables through structured cable management paths and maintain service loops to reduce strain on IDC terminations and simplify future maintenance.
Need help designing a telecom cross-connect layout?
Our team can help select compatible M66 blocks, mounting brackets, bridging clips, and cross-connect accessories for clean, scalable telecom infrastructure deployments.
