SMA Connector – RG174/188A/316/LMR100 – Female Bulkhead – Crimp – Gold

Price:

$17.56

PN: 18-104921 SKU 18-104921 Categories , , , Tags , , , , , , ,

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

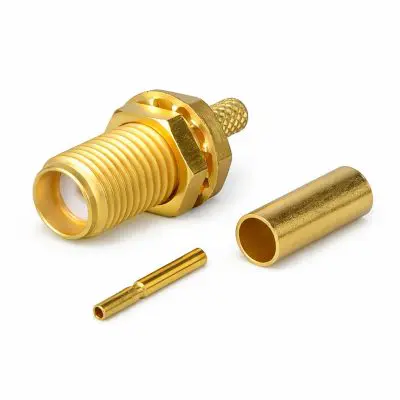

SMA Connector — Female Bulkhead, Crimp, RG174 / RG188A / RG316 / LMR100, Gold

Compact SMA female bulkhead connector with crimp attachment, designed for RG174, RG188A, RG316, and LMR100 miniature coax. The gold-plated body and contact provide a stable 50 Ω RF interface for panel-mounted jacks, pigtails, and jumpers in wireless, test, and microwave applications.

Crimp & Solder Tools
RG174 / RG316 / RG188 Coax

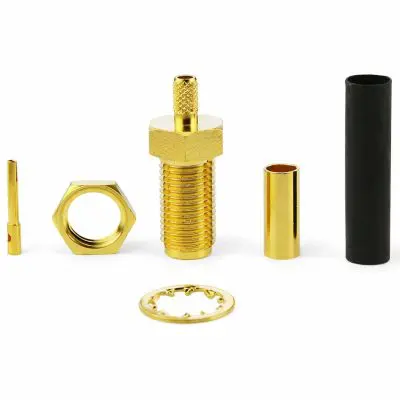

  • SMA female bulkhead — Threaded SMA jack with panel nut and washer for secure mounting.
  • Miniature coax support — Fits RG174, RG188A, RG316, and LMR100 50 Ω coaxial cables.
  • Crimp attachment — Crimp ferrule on shield for quick, repeatable terminations.
  • Gold-plated body & interface — Gold finish for low contact resistance and corrosion resistance.
  • 50 Ω RF performance — Suited for broadband RF, wireless, GPS, and test applications.
  • Ideal for pigtails — Perfect for chassis, enclosure, and bulkhead feed-through SMA jack installations.
Specification Detail
Connector Type SMA female bulkhead, straight
Impedance 50 Ω nominal
Cable Compatibility RG174, RG188A, RG316, LMR100 mini coax
Attachment Method Crimp shield with ferrule (soldered or crimped center pin, per assembly)
Mounting Style Bulkhead / panel mount with nut and washer
Body Finish Gold-plated
Typical Applications Panel jacks, RF modules, pigtails, WLAN/ISM links, lab and test equipment interconnects
