SMA Connector – RG-8X/LMR240/B7808A – Male 3 Piece Crimp or Straight or 90° – Gold

Price:

$26.66

PN: 18-104918-90 SKU 18-104918-90 Categories , , , Tags , , , , , , , ,

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

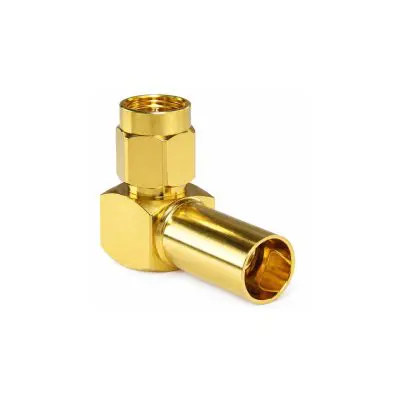

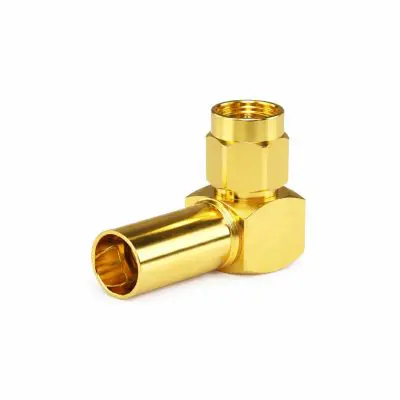

SMA Connector — RG-8X / LMR240 / B7808A, Male, 3-Piece Crimp, Straight or 90° Gold

Versatile SMA male RF connector family for
RG-8X, LMR240, and Belden 7808A 50 Ω coax, offered in both
straight and 90° right-angle versions.

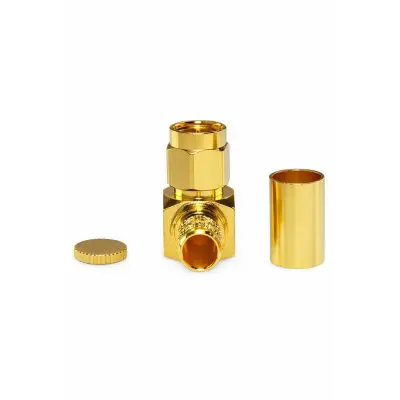

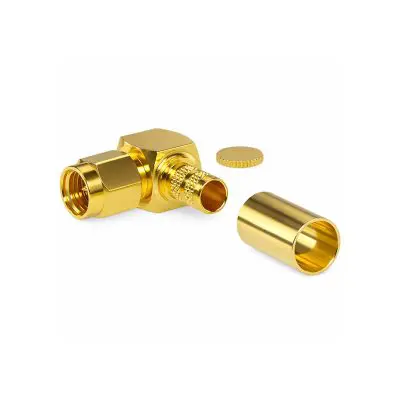

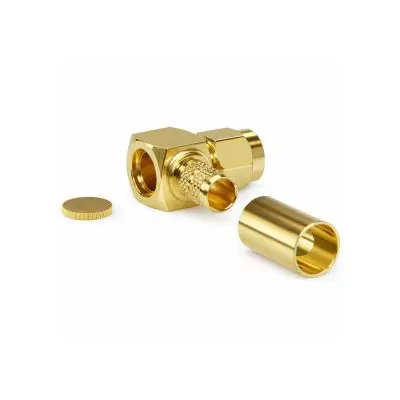

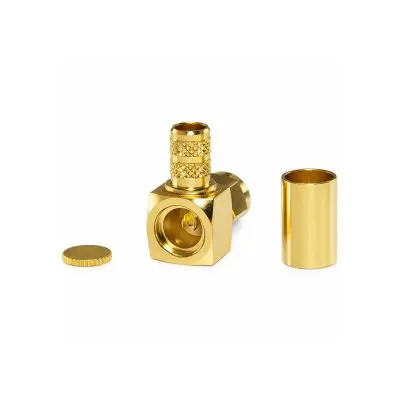

The 3-piece crimp design (body, pin, ferrule) with
gold-plated construction delivers low loss, secure terminations for
feedlines, jumpers, and panel connections in wireless, RF, and test applications.

Crimp & Solder Tools
 Coax

  • SMA male interface — Standard threaded SMA plug for RF gear, antennas, and modules.
  • Fits RG-8X / LMR240 / B7808A — Sized for mid-size 50 Ω coax used in feedlines and jumpers.
  • 3-piece crimp design — Separate body, center pin, and ferrule for strong, repeatable terminations.
  • Straight or 90° options — Choose inline straight or right-angle versions to match your layout.
  • Gold-plated construction — Gold finish on body/contact for low contact resistance and corrosion resistance.
  • 50 Ω RF performance — Ideal for HF/VHF/UHF, WLAN/ISM, and general RF interconnects.
Specification Detail
Connector Type SMA male, straight or 90° right-angle (3-piece crimp)
Impedance 50 Ω nominal
Cable Compatibility RG-8X, LMR240, Belden 7808A (mid-size 50 Ω coax)
Attachment Method 3-piece crimp (body, center pin, ferrule)
Body / Contact Finish Gold-plated body and center contact
Orientation Options Inline straight or right-angle 90° versions (model-dependent)
Typical Frequency Range DC to typical SMA RF bands (application-dependent)
Typical Applications Feedlines, antenna jumpers, RF modules, WLAN/ISM radios, ham radio, and test cables

Why buy from Gruber Communications

  • Feedline-focused selection — Stocked specifically for RG-8X/LMR240/B7808A jumper and antenna builds.
  • Layout flexibility — Straight and 90° options help solve both clean panel runs and tight-clearance installs.
  • End-to-end RF solutions — Pair with our mid-size coax, adapters, and mounting hardware for complete assemblies.
