SMA Connector – RG174/188A/316/LMR100/B7805A – Male – Crimp Straight – Gold

Price:

$7.37

PN: 18-104919 SKU 18-104919 Categories , , , Tags , , , , , , ,

Unprecedented Lifetime Warranty on all the products we produce.

CALIFORNIA WARNING

Description:

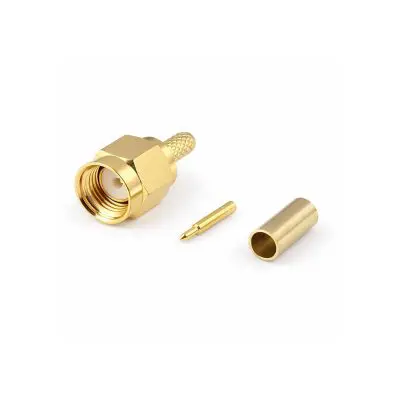

SMA Connector — Male, Crimp/Solder, RG174 / RG316 / RG188, Gold-Plated

High-performance SMA male RF connector with a crimp/solder attachment designed for RG174, RG316, and RG188 coaxial cables. This 50 Ω connector supports operation from DC to 12.4 GHz, using a PTFE dielectric and gold-plated brass body and contacts for low loss and stable RF performance in lab, wireless, and microwave applications.

Crimp & Solder Tools
RG174 / RG316 / RG188 Coax

  • SMA male interface — Standard threaded SMA male for RF, microwave, and lab applications.
  • Fits RG174 / RG316 / RG188 — Sized for popular 0.1″ class miniature 50 Ω coax cables.
  • Crimp/solder attachment — Shield crimp with soldered center contact for secure, low-loss terminations.
  • DC–12.4 GHz performance — Wide frequency range for broadband and microwave links.
  • PTFE dielectric — Stable RF characteristics and excellent insulation at higher frequencies.
  • Gold-plated brass body & contact — Corrosion-resistant, low contact resistance construction.
  • RoHS & REACH compliant — Meets modern environmental and safety directives.
Specification Detail
Part Number PE45145 (Gruber SMA male)
Connector Type SMA male, straight
Impedance 50 Ω nominal
Cable Compatibility RG174, RG316, RG188 mini coax
Frequency Range DC to 12.4 GHz
Attachment Method Crimp shield / solder center contact
Body Material Brass, gold-plated
Center Contact Brass, gold-plated
Dielectric PTFE
Compliance RoHS and REACH compliant
Typical Applications Lab jumpers, RF modules, test cables, WLAN/ISM links, general microwave interconnects

Why buy from Gruber Communications

  • RF & microwave expertise — Stocked specifically for miniature SMA jumper and pigtail builds.
  • Lab- and field-ready — Crimp/solder style gives robust terminations for both test bench and deployed systems.

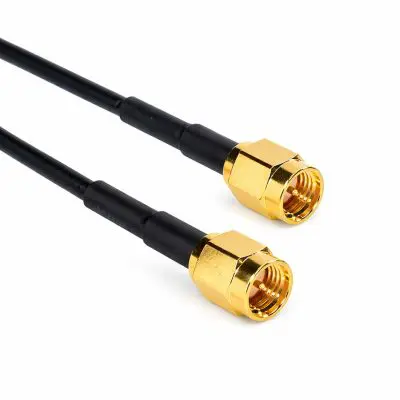

  • End-to-end assemblies — Pair with our RG174/RG316/RG188 coax and adapters for complete custom RF cable solutions.
